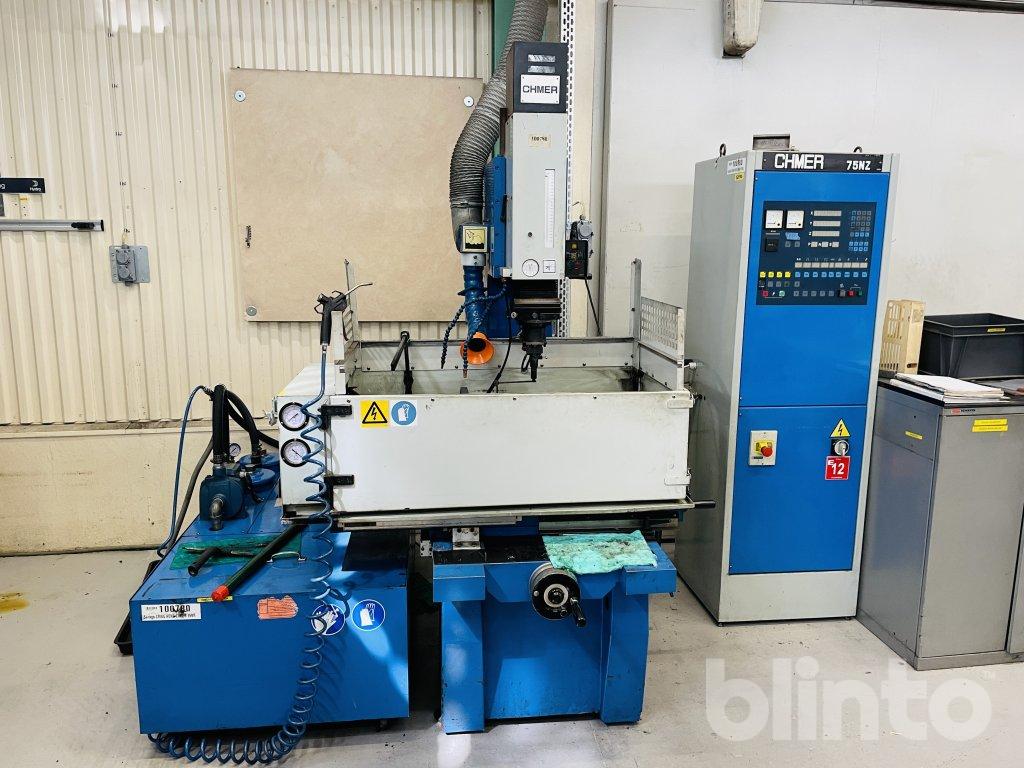

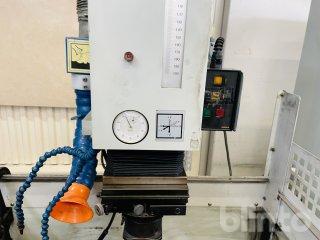

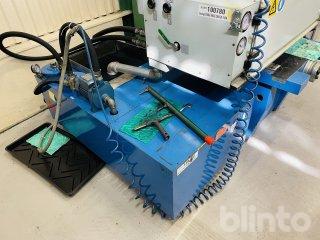

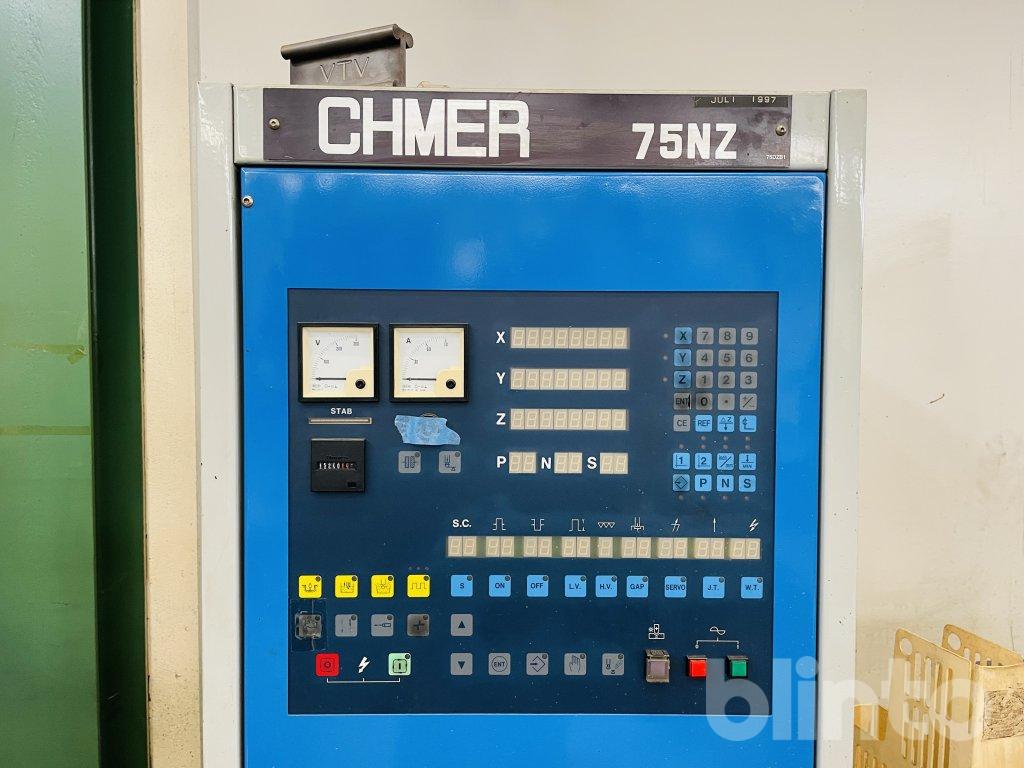

Chmer 75NZ Sink Spark
Well-maintained machine
Year: 1997
Operating time: 15240 hours

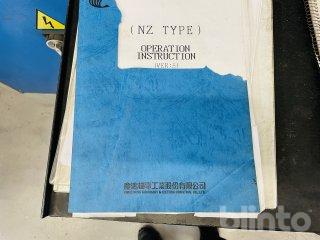

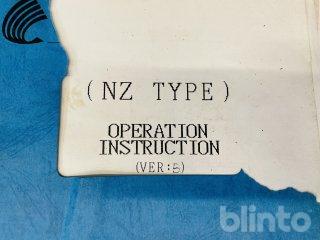

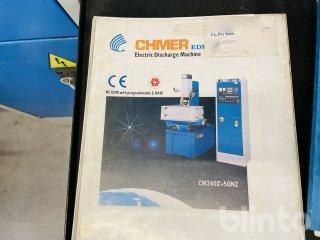

Documentation
Specifications

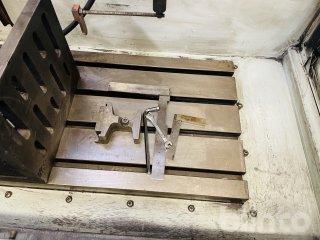

Table size (WxD) mm/inch: 650x400/25.6x15.8
Table movement (X,Y) mm/inch: 400x300/15.8x11.8
Work tank (WxDxH) mm/inch: 1050x600x300/41.3x23.6x11.8
Frame servo movement (Z) mm/inch: 350/13.8
RAM plate for work table mm/inch: 205~555/8.1~21.9
Max. electrode weight kg/lb: 70/154
Max. workpiece weight kg/lb: 750/1650
External dimensions (WxDxH) mm/inch: 1400x1340x2190/55.1x52.7x86.2
Machine unit weight kg/lb: 1400/3080
Power Supply Unit
Max. processing current: A 75
Total power supply KVA: 5
Max. metal removal rate mm3/min: 550/0.034
Electrode wear ratio: % 0.2
Best surface roughness um/Ra; 0.45
External dimensions (WxDxH) mm: 540x470x1720
Weight kg/lbs: 220/484
