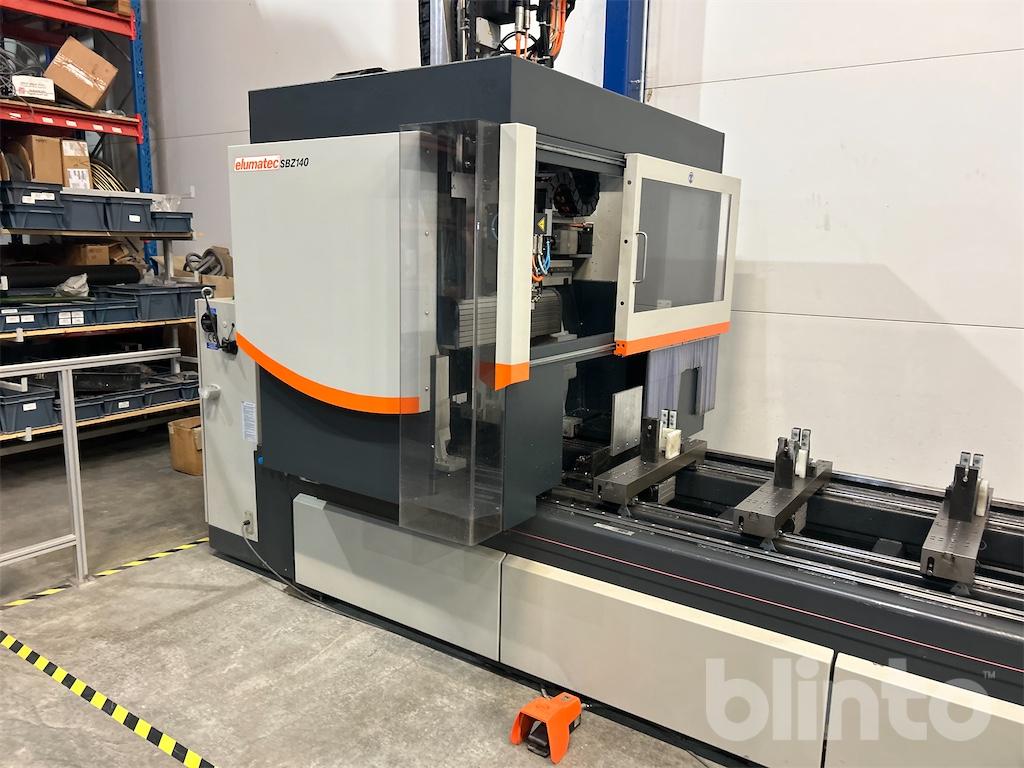

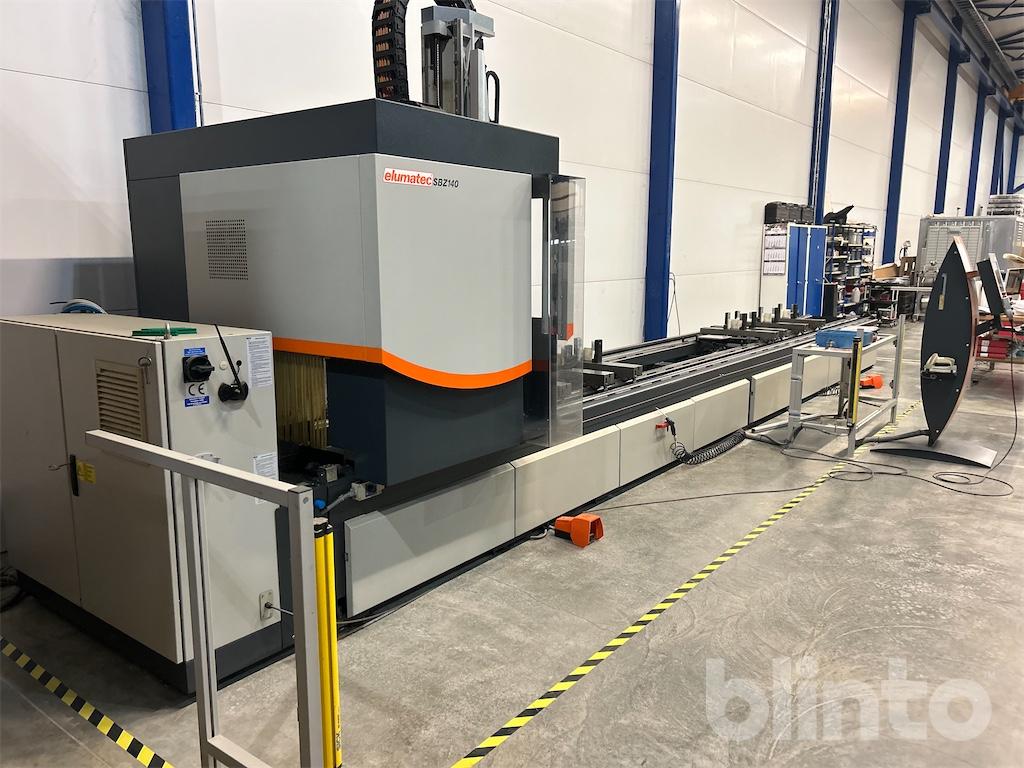

Machining Center

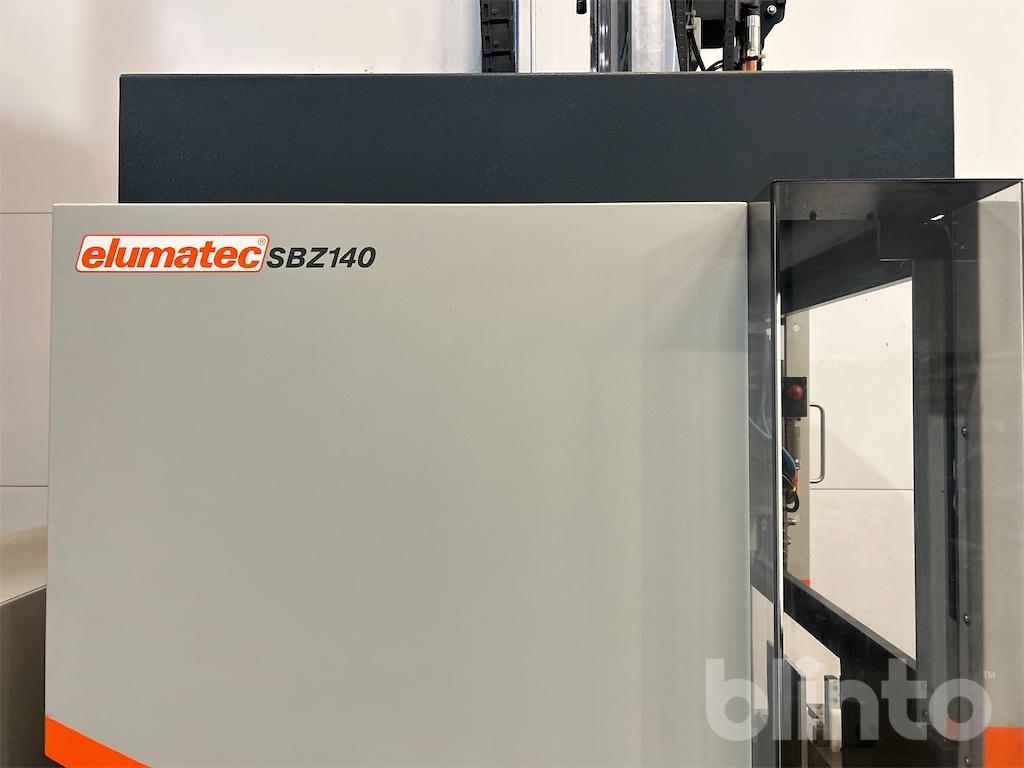

Brand: Elumatec
Model: SBZ 140
Year Model: 2007
Info

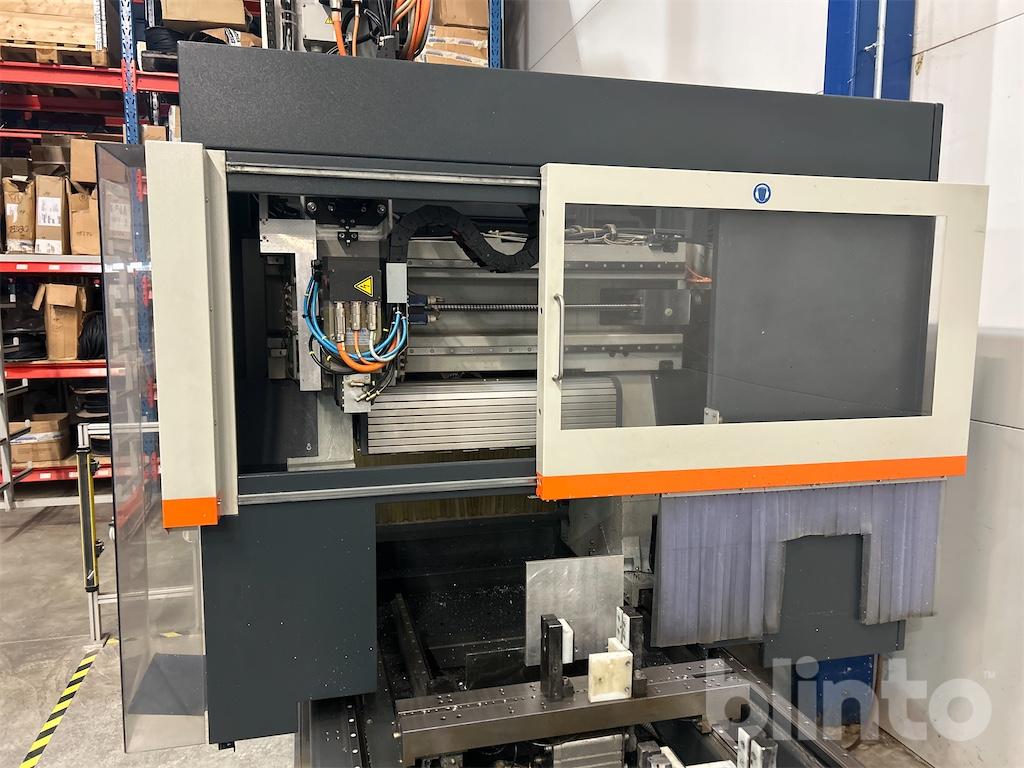

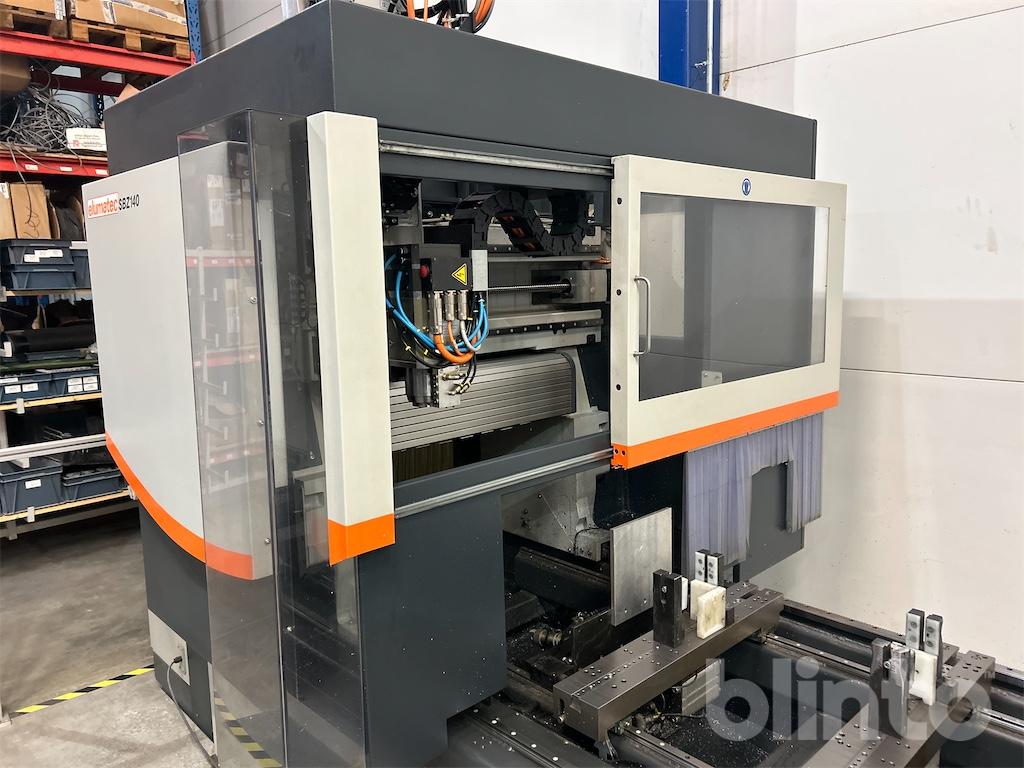

4-axis profile machining center
Designed for economical and efficient machining of aluminum and thin-walled
steel profiles

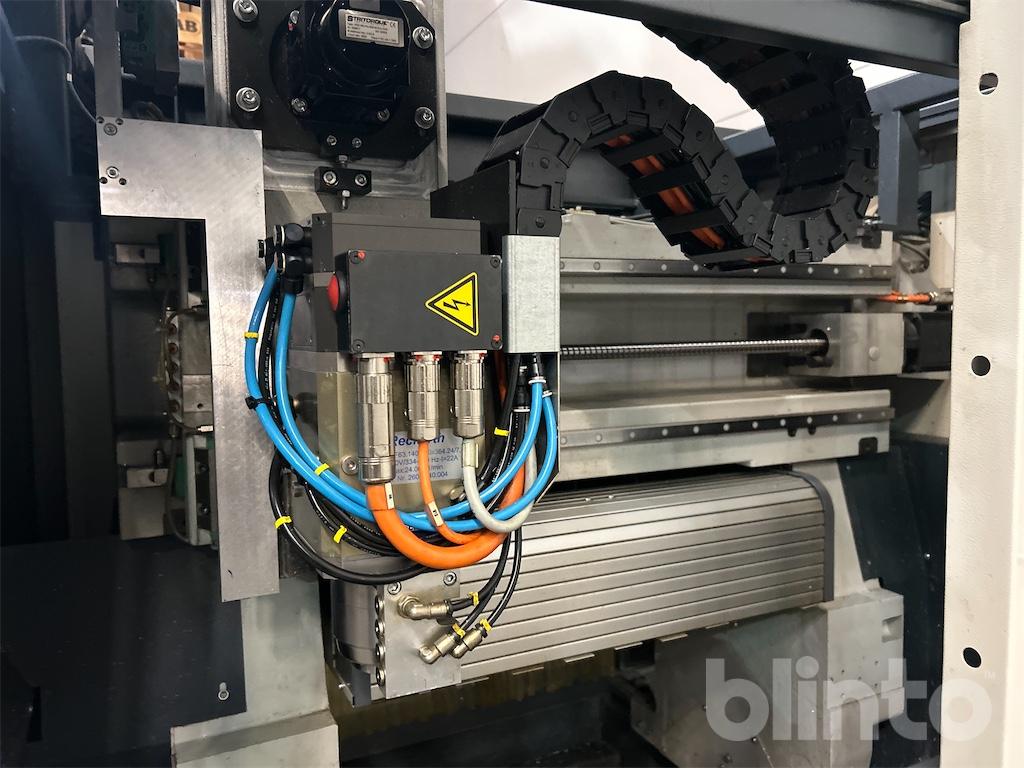

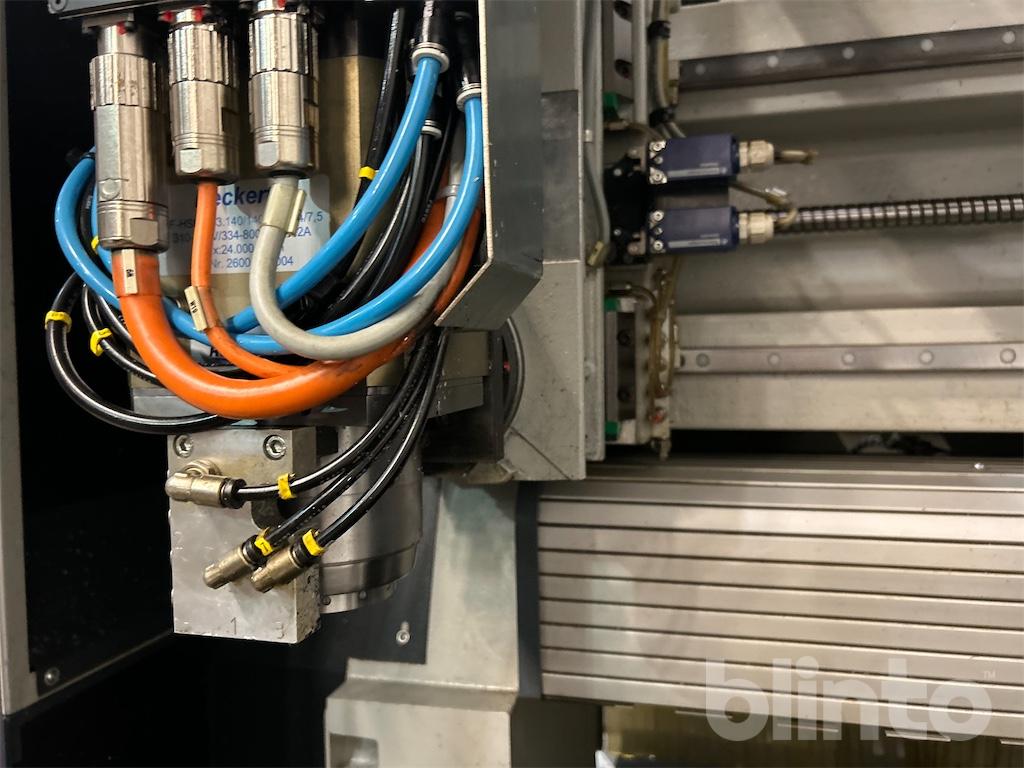

Standard version with air-cooled overhead spindle
All operations, such as milling, drilling, and threading, are performed while the profile
clamping is stationary to protect profile surfaces
Machining with all tools at an angle continuously adjustable from -90° to +90°

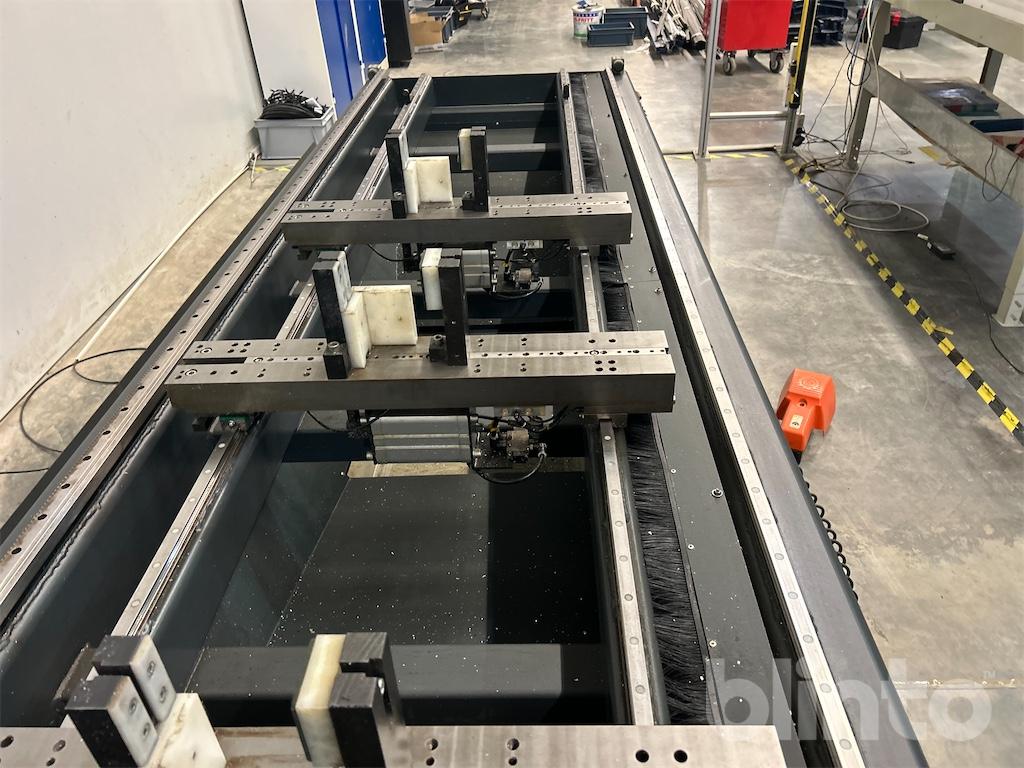

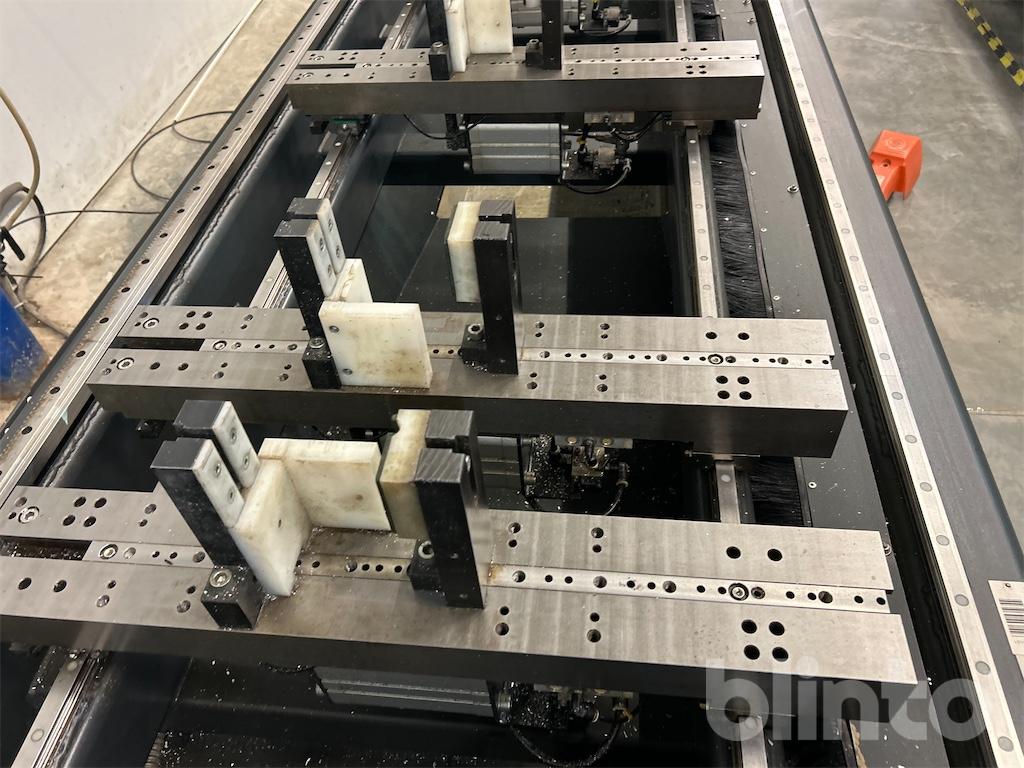

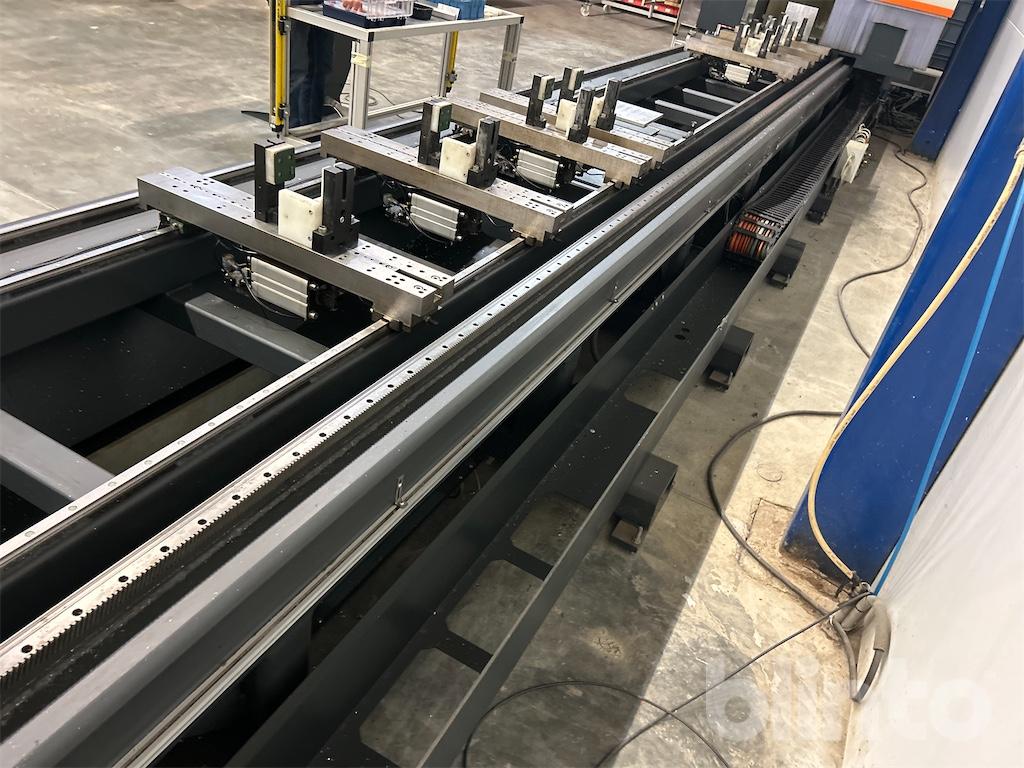

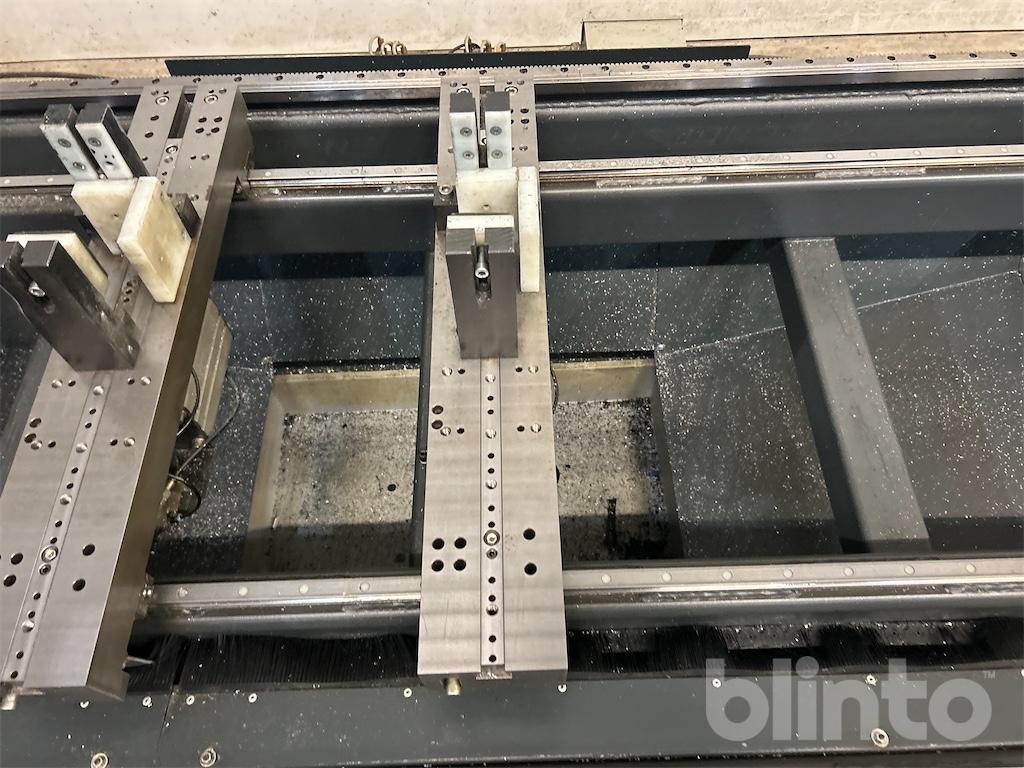

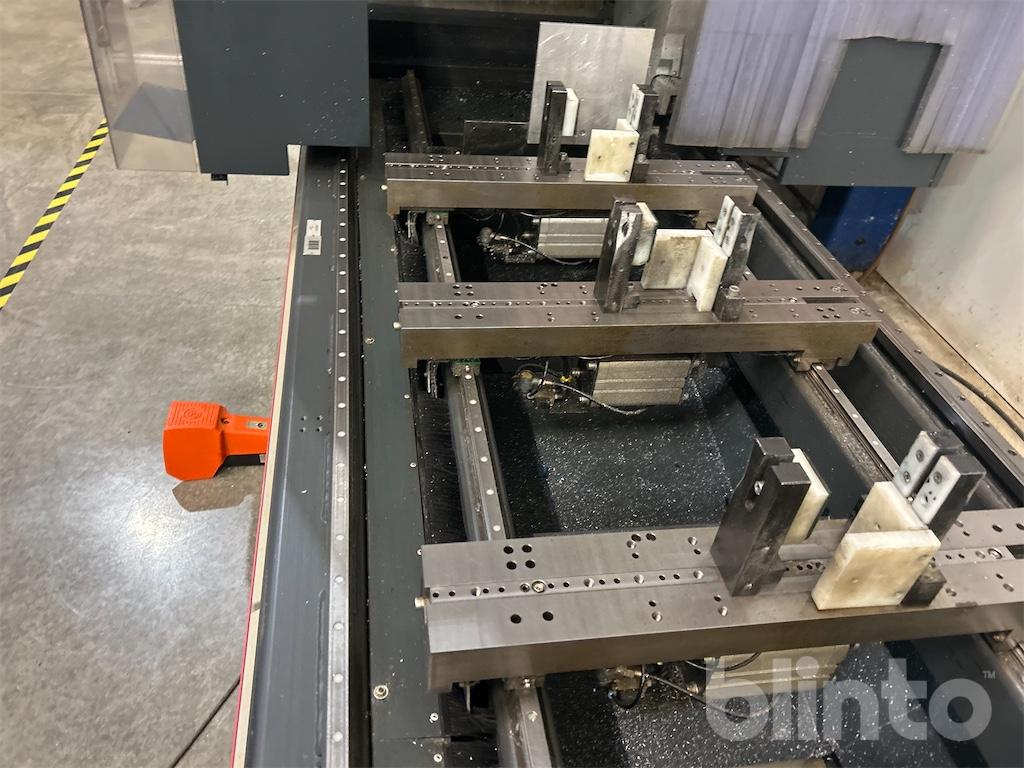

Automatic clamp positioning with absolute measurement system

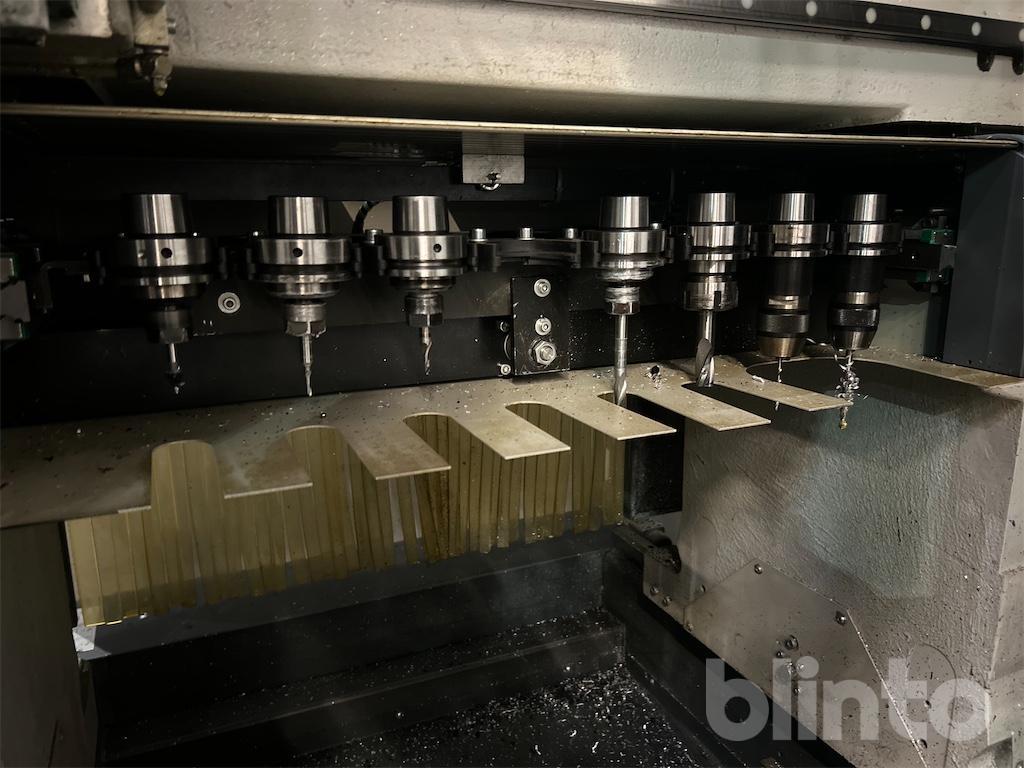

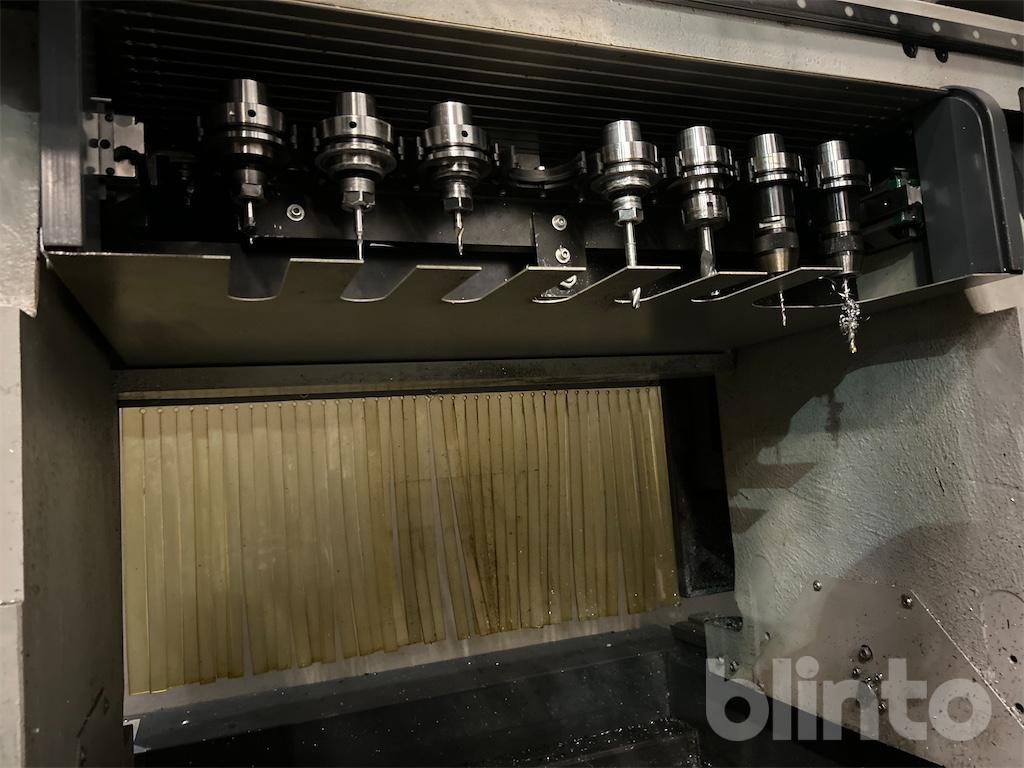

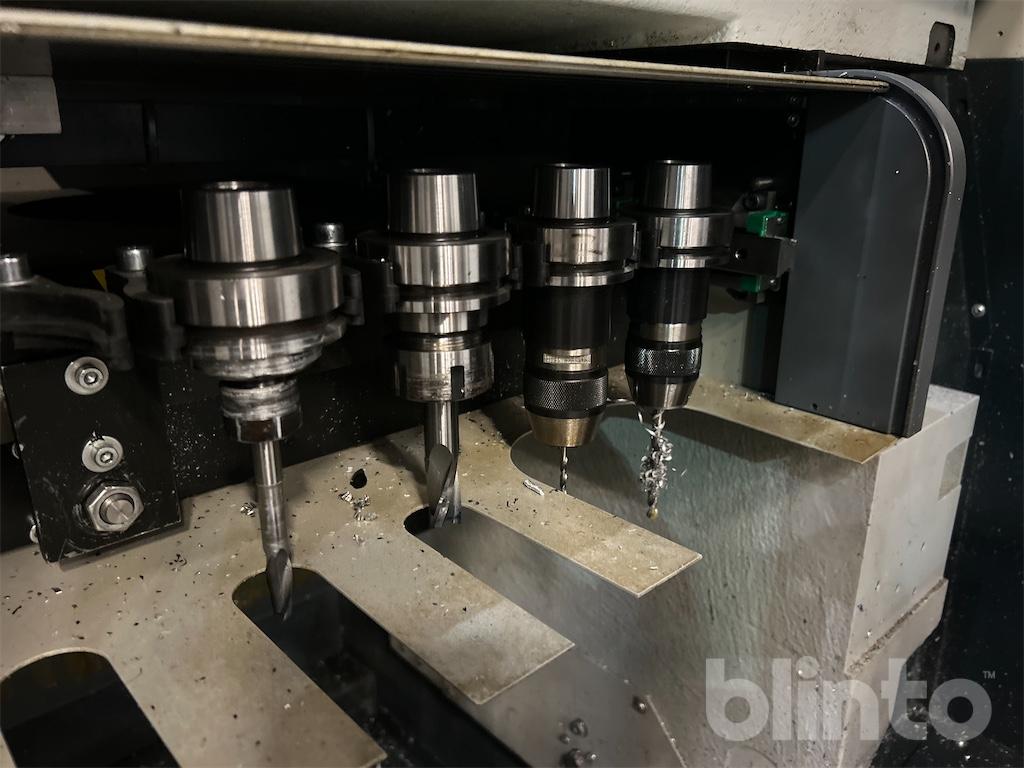

The built-in tool magazine ensures that tool change times are kept short and
optimizes machining cycles
The magazine can be equipped with eight tools
Up to two rotating angle heads with two different tools are available as options for
double-end and end machining (0° – 90° – 180° – 270°) (optional)

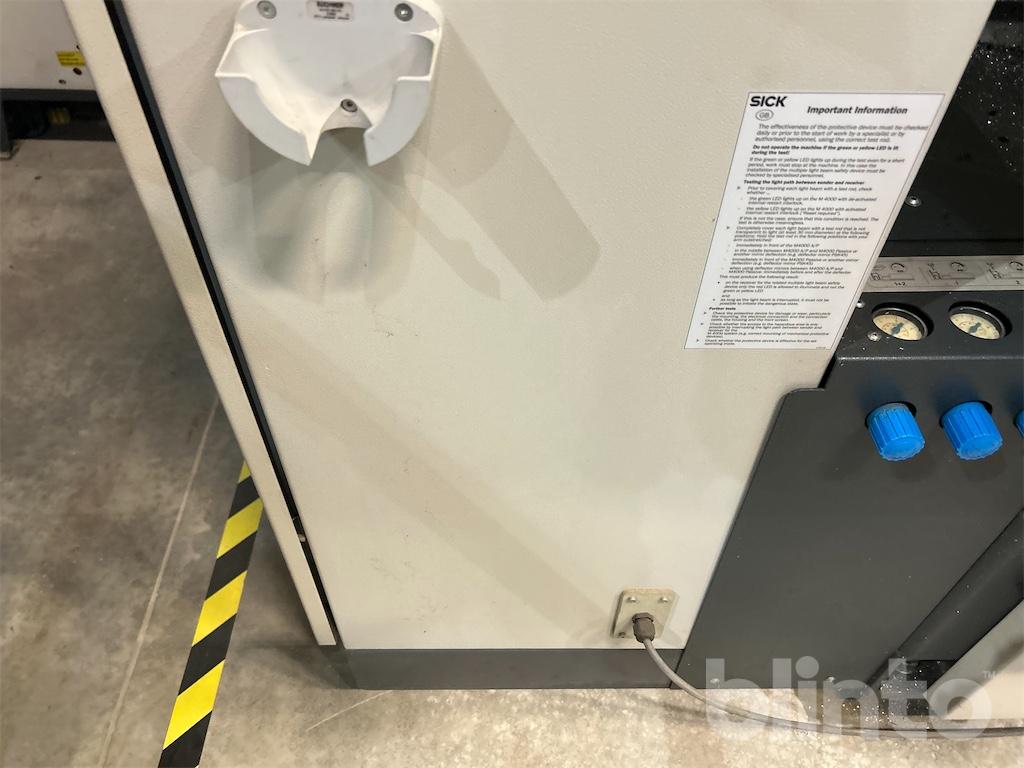

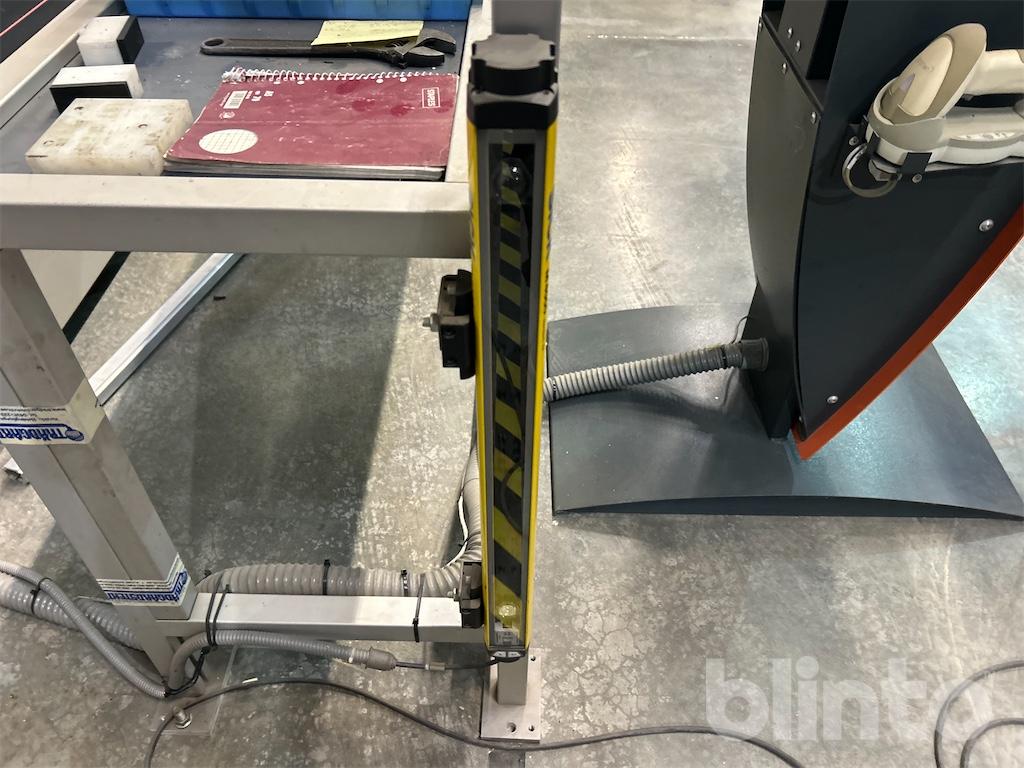

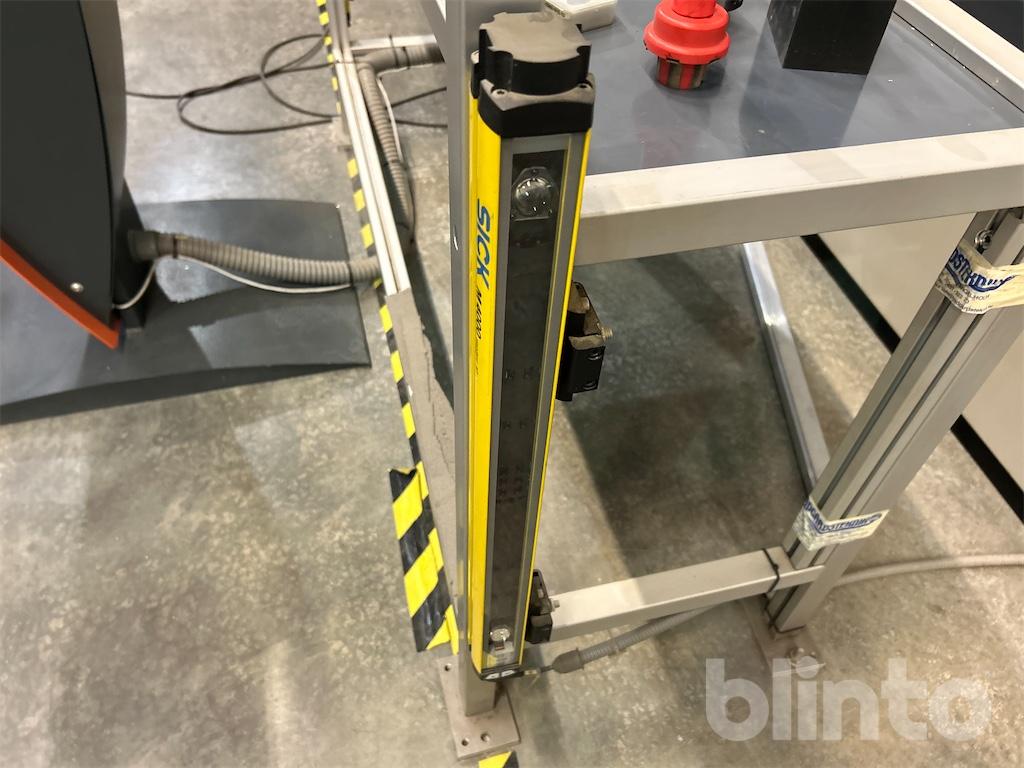

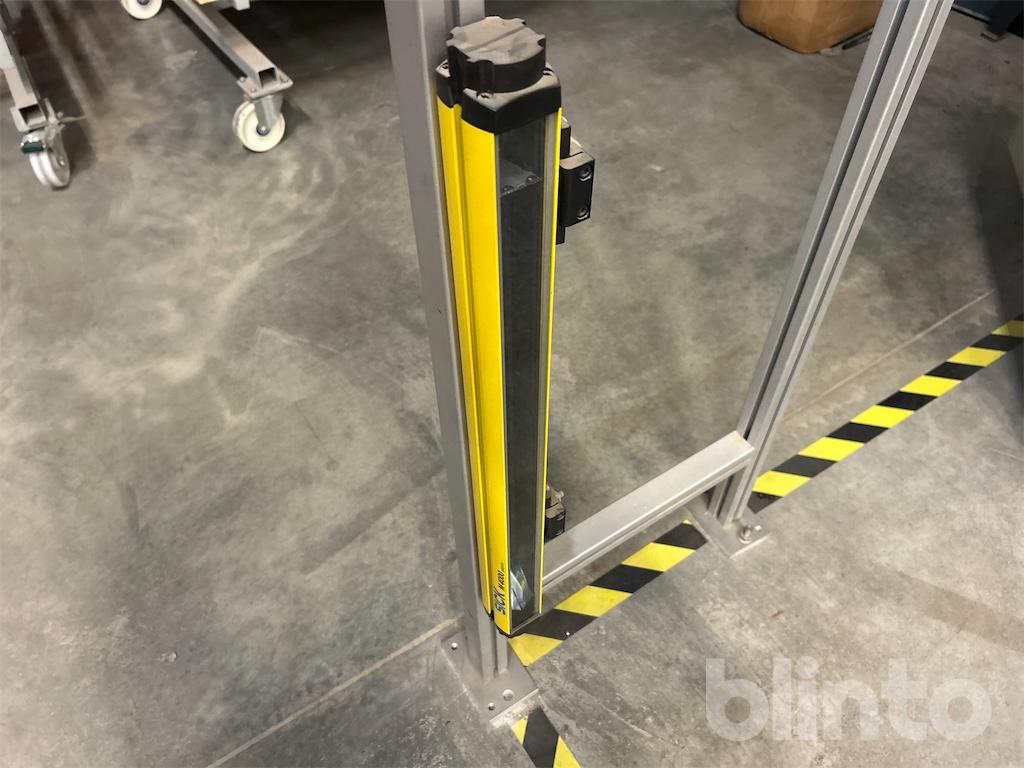

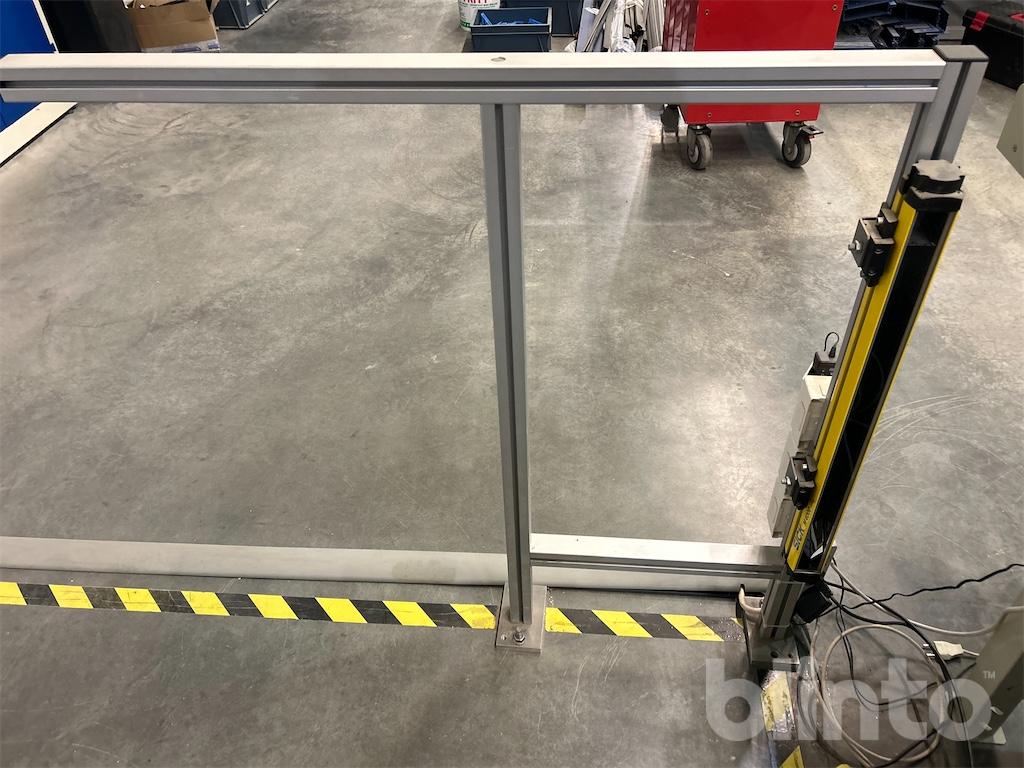

Two separate working zones allow for shuttle operation (optional). There is a
central laser scanner on the operator side to protect the area for maximum
safety.

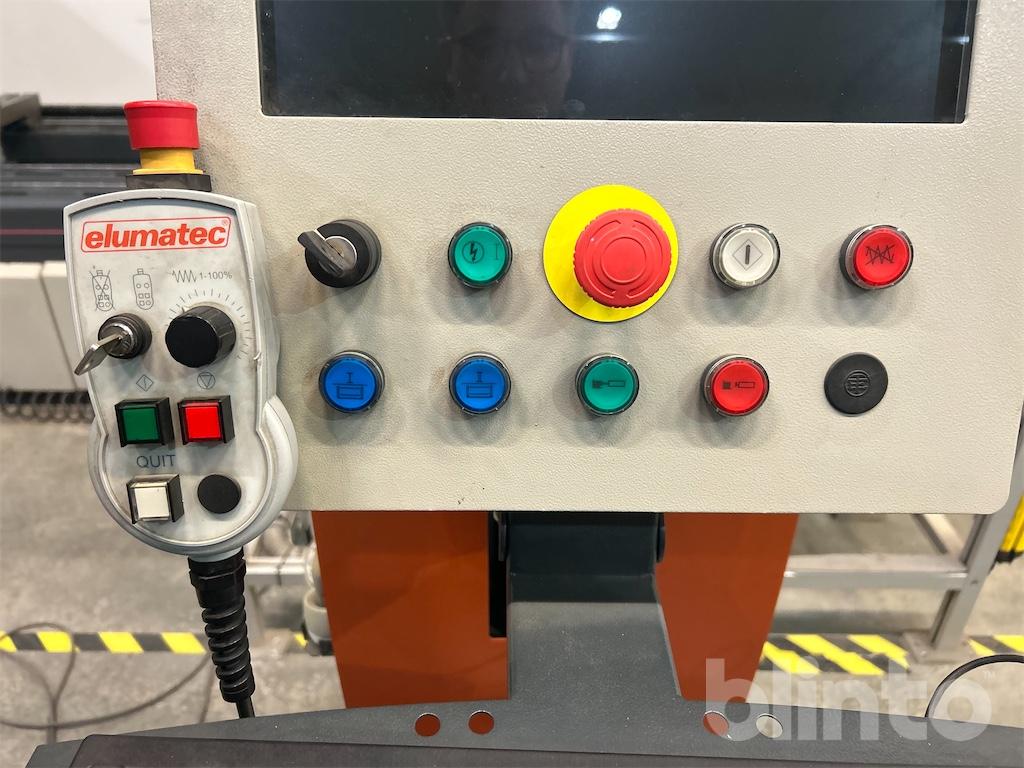

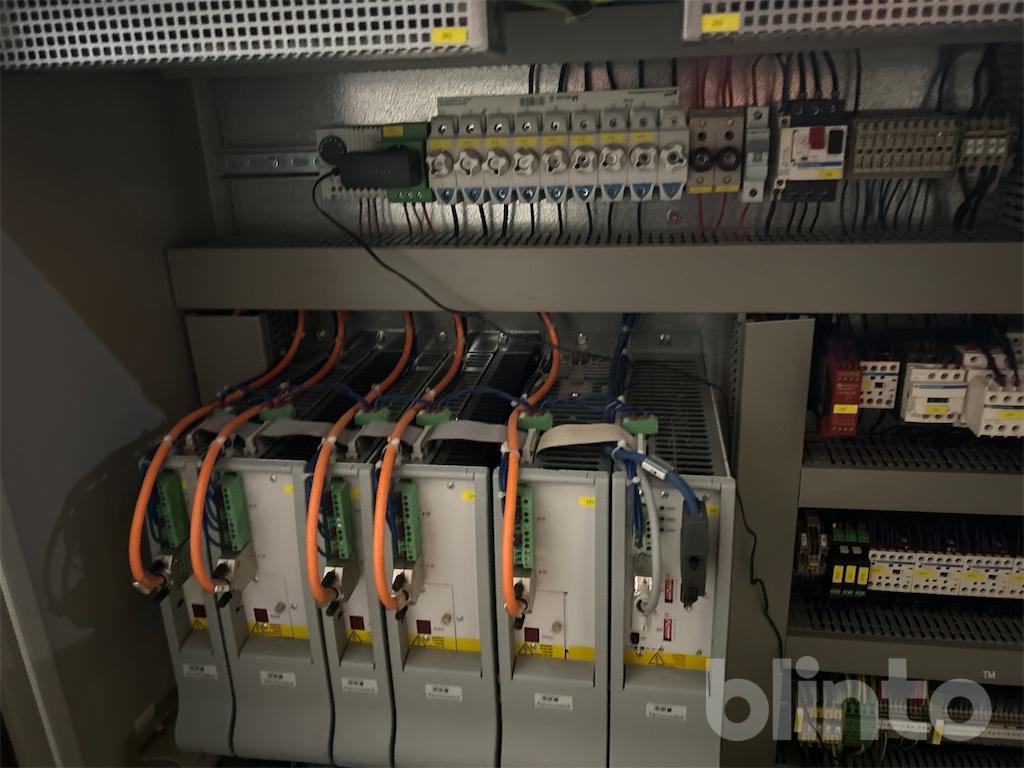

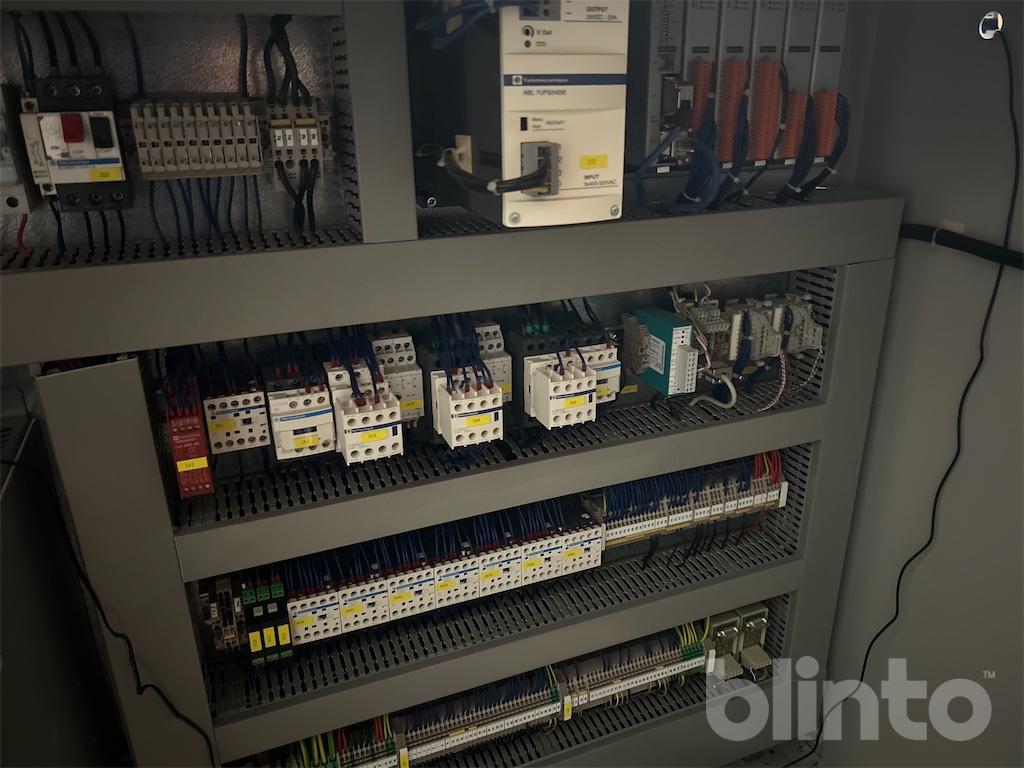

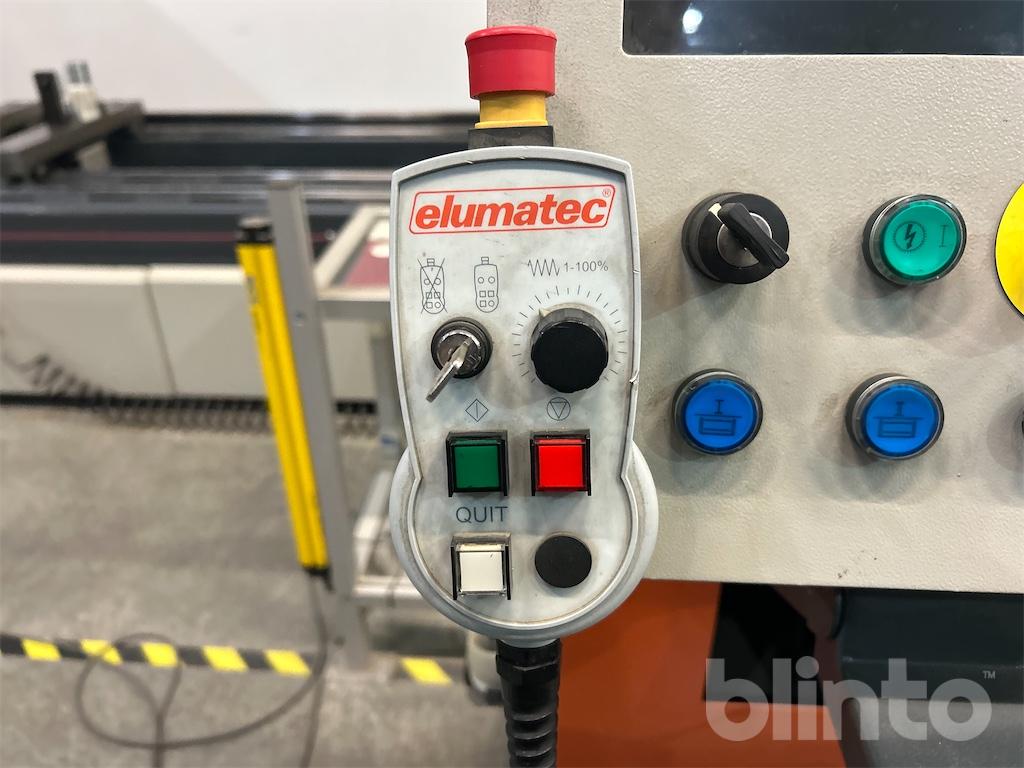

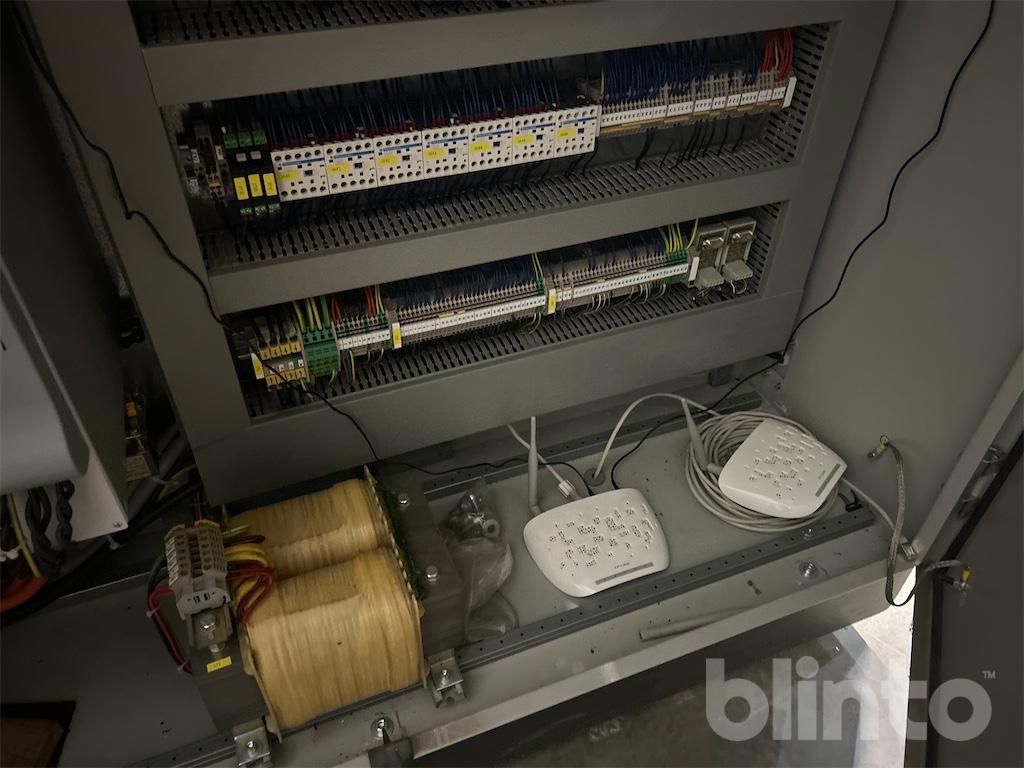

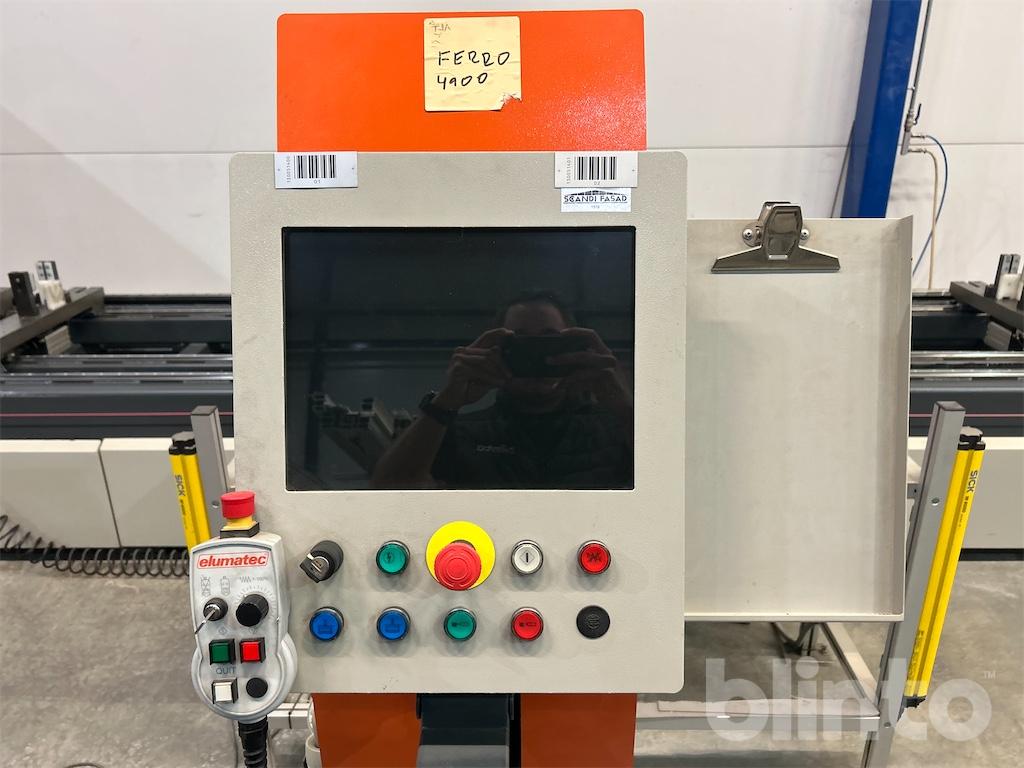

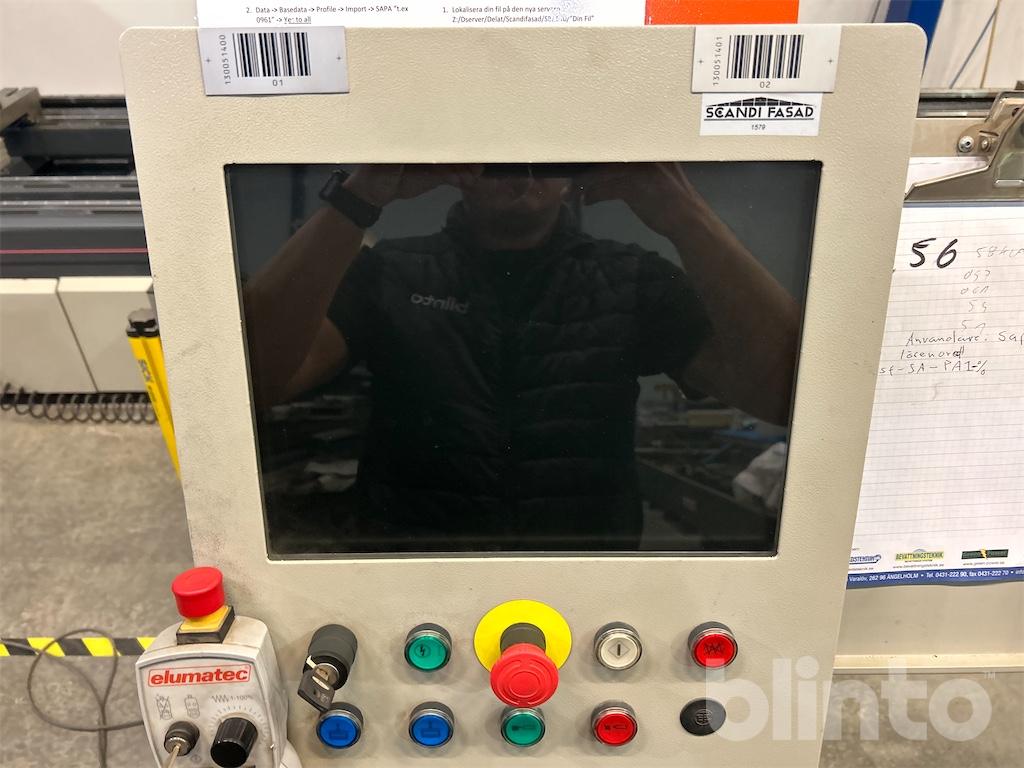

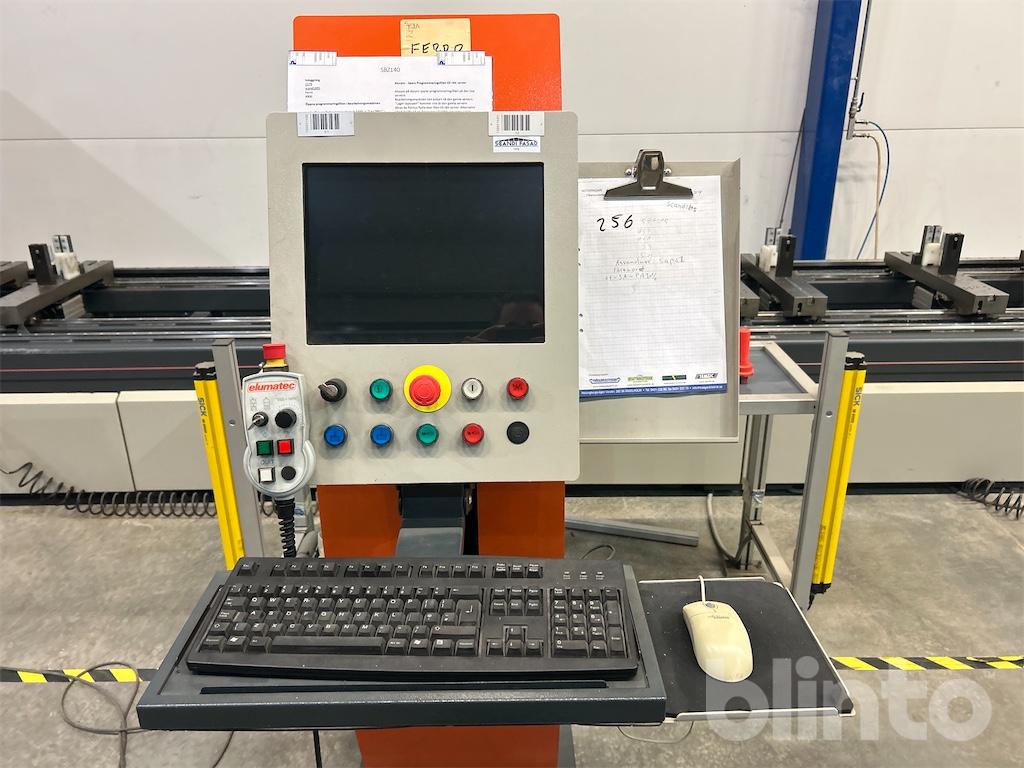

4-axis control unit
18.5" color screen, USB ports, and network connection
Windows operating system
eluCam

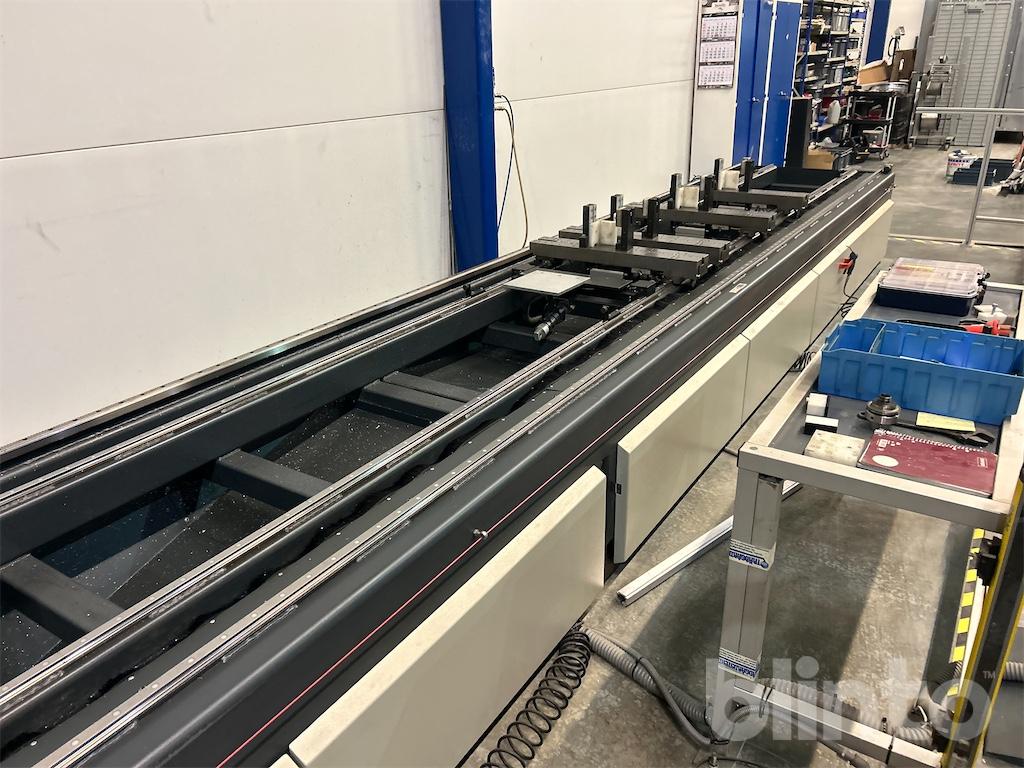

Processing lengths
Processing length without profile end machining, 7,720 mm
SBZ 140 – 9.7 m
Max. processing length with profile end machining, 9,700 mm
Max. processing length without profile end machining, 9,820 mm
Options
Pendulum operation for work on both sides
Automatic length measurement on both sides
The clamping unit accommodates double-profile machining

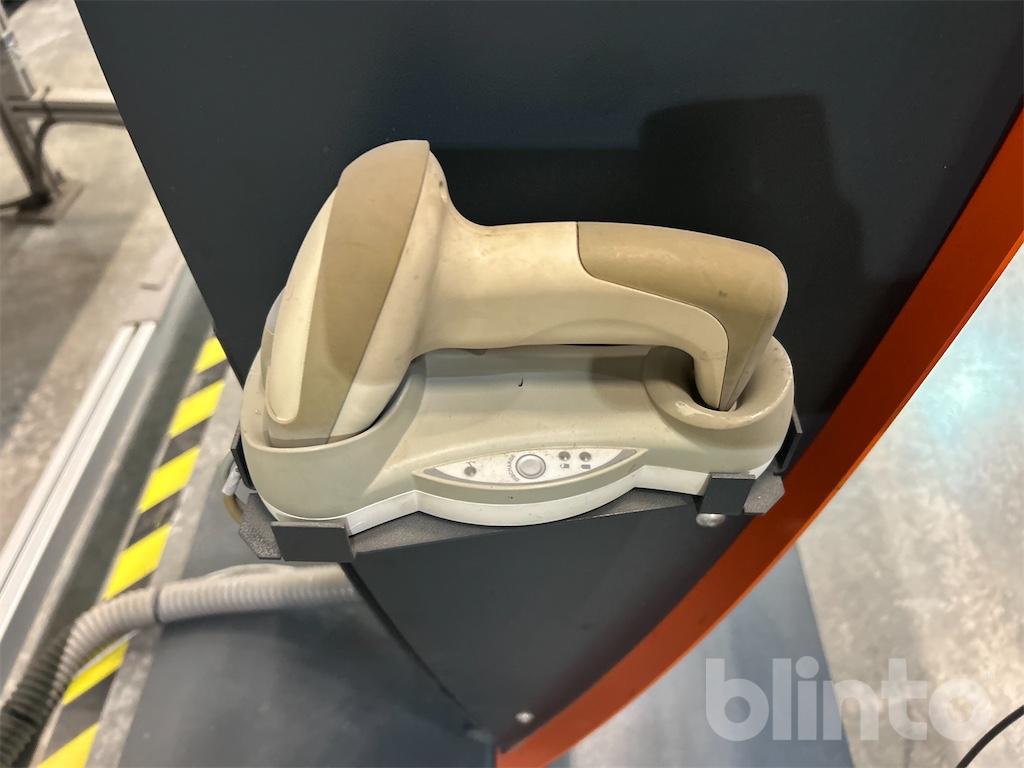

Barcode reader
Stationary tool magazine (8x)
Built-in tool changer for angle head or saw head
Angle control heads
Saw head

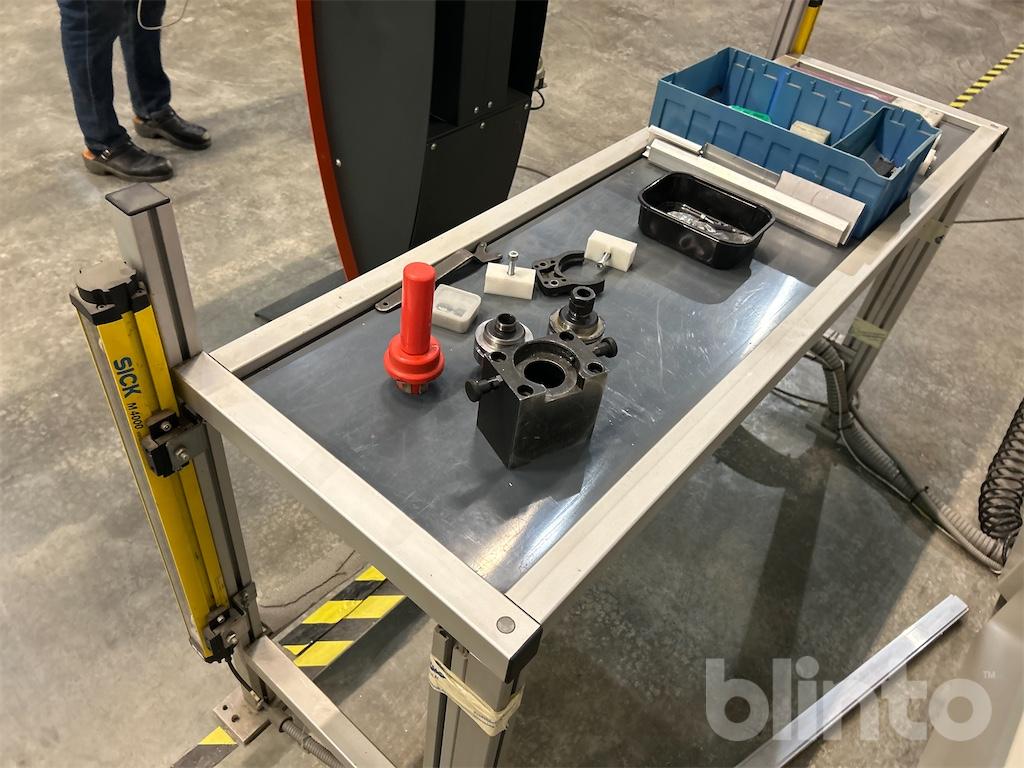

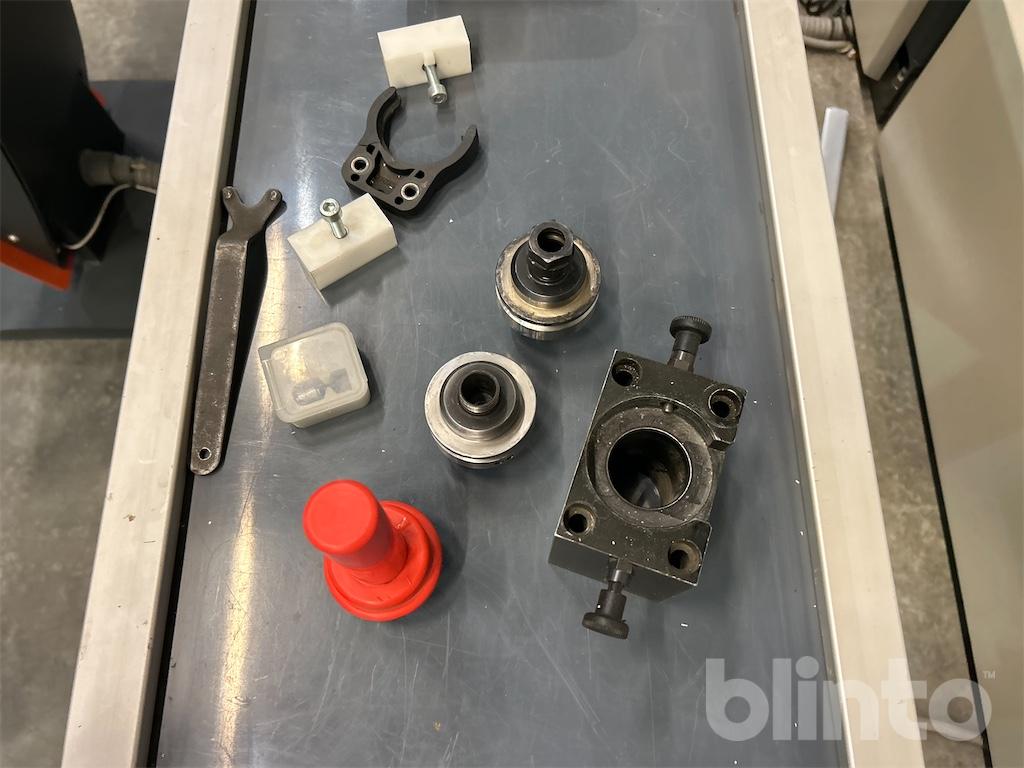

Tool holder
Clamping sleeve chucks
Clamping sleeves

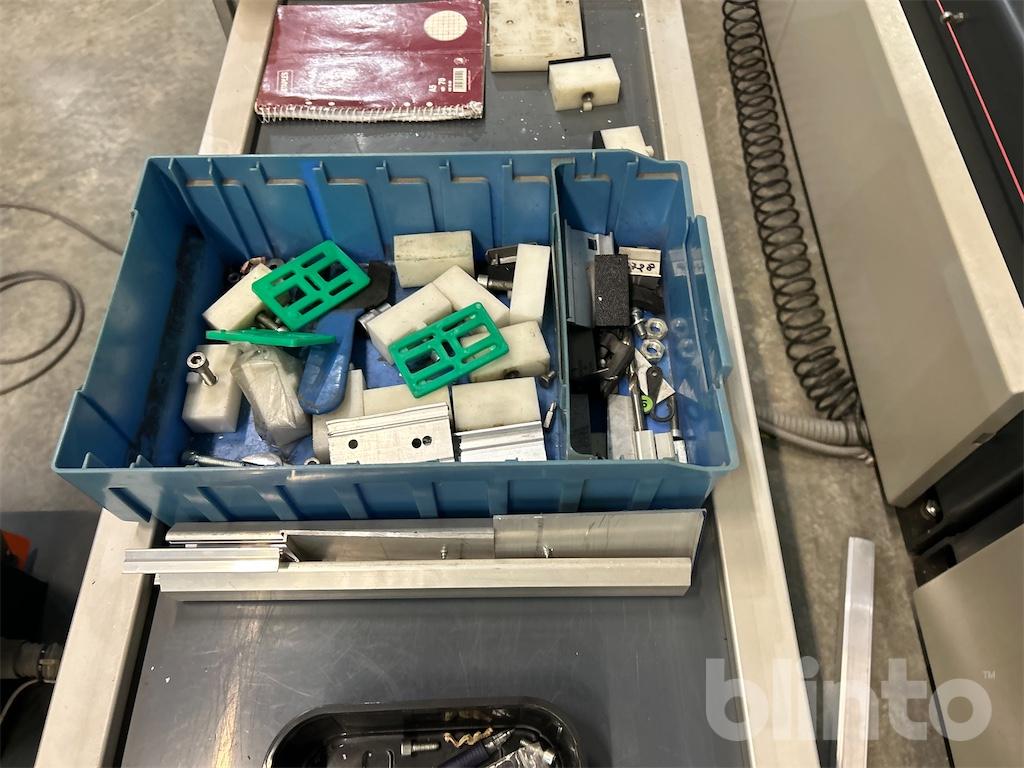

Tools
eluCad (office software for optimized production management)
Dimensions & Weight
Length: 9800 mm
Width: 2000 mm
Height: 2600 mm
Weight: Unknown
Additional Information
Seller's Comments
Tim Olofsson
Skåne län
