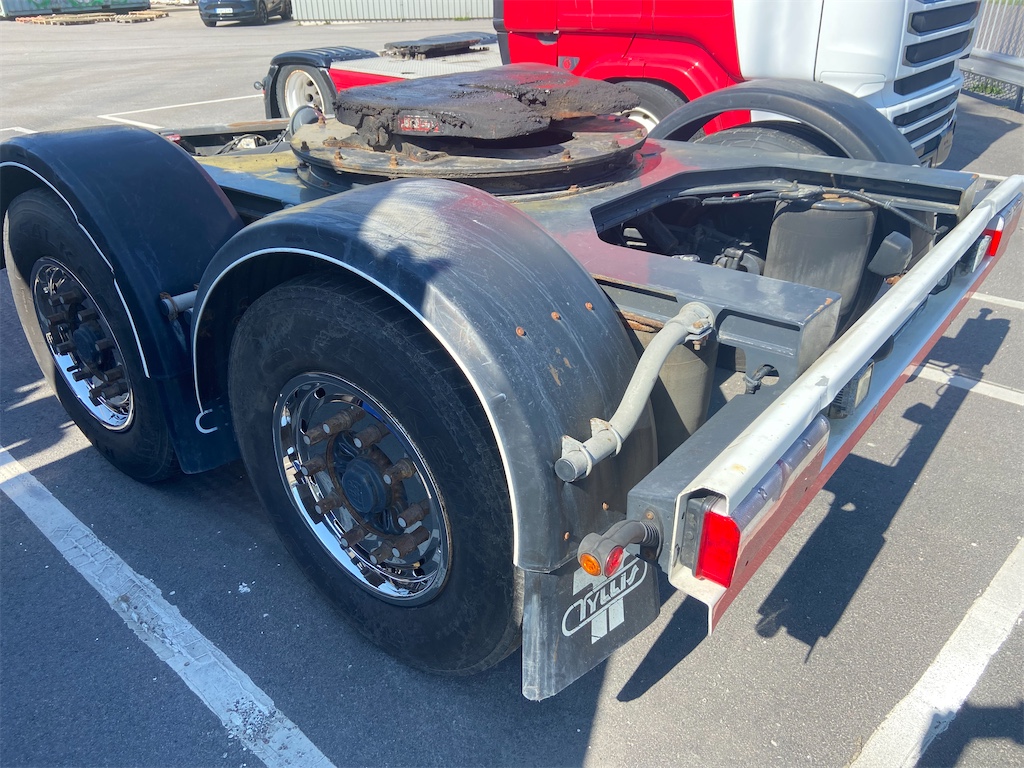

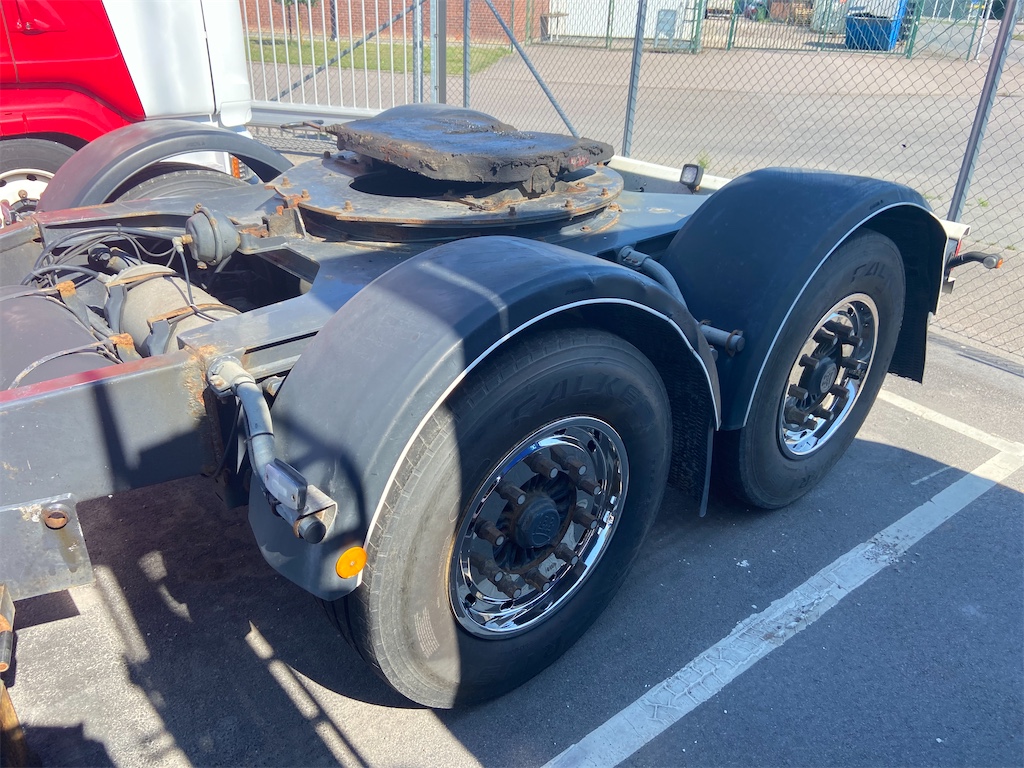

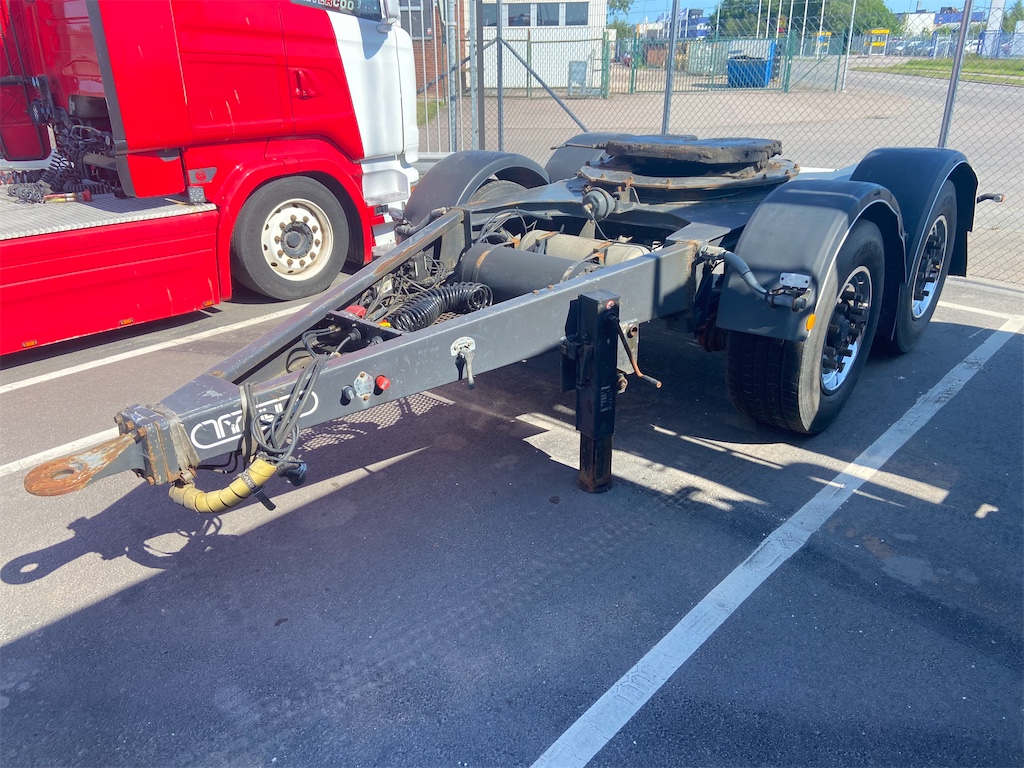

Dolly
Brand: TYLLIS
Model: OY AB
Year Model: 2016
Delivered newly inspected
Support Legs
Dimensions & Weight
Length: 5070 mm
Width: 2550 mm
Height: 1150 mm
Height to cargo area: mm
Service Weight: 2500 kg
Total Weight: 18000 kg
Description
Length 3550 mm from center of drawbar to center of turntable
Height Turntable height 1150 mm

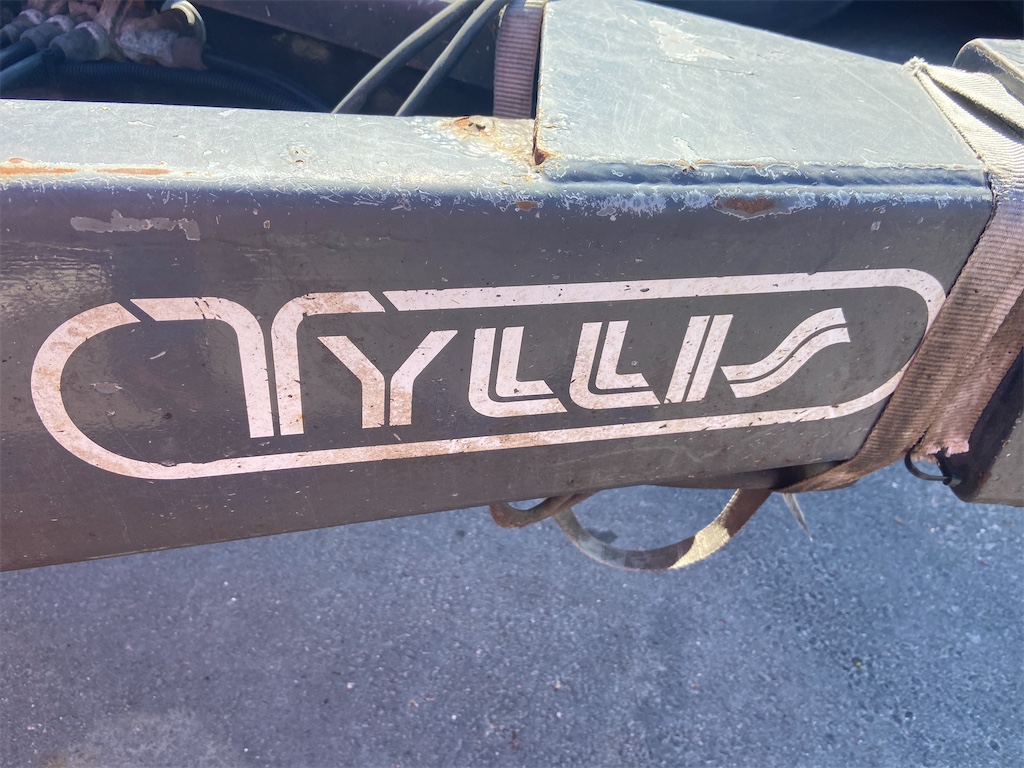

Frame Welded low beam 83 mm with double living plates model Tyllis

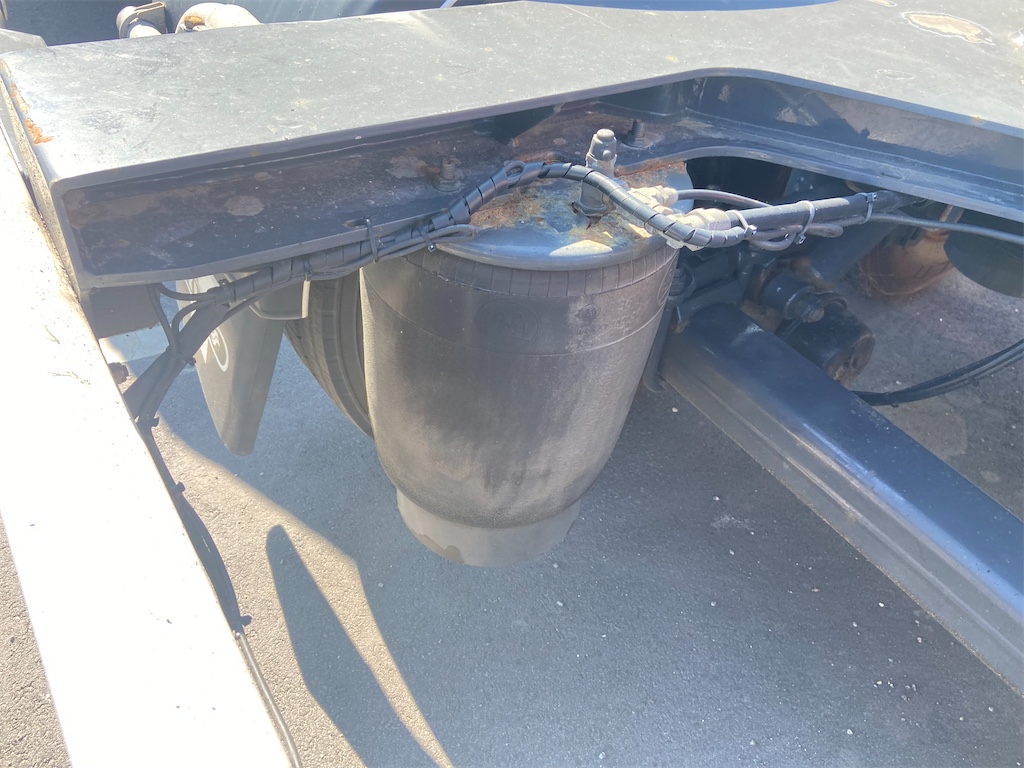

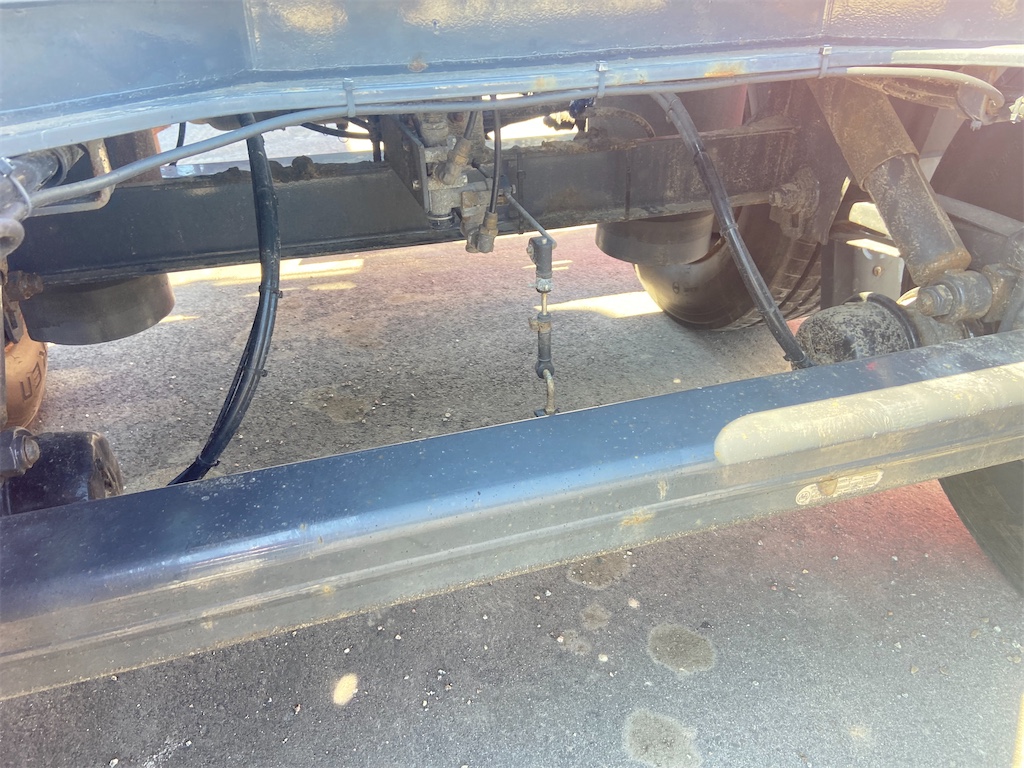

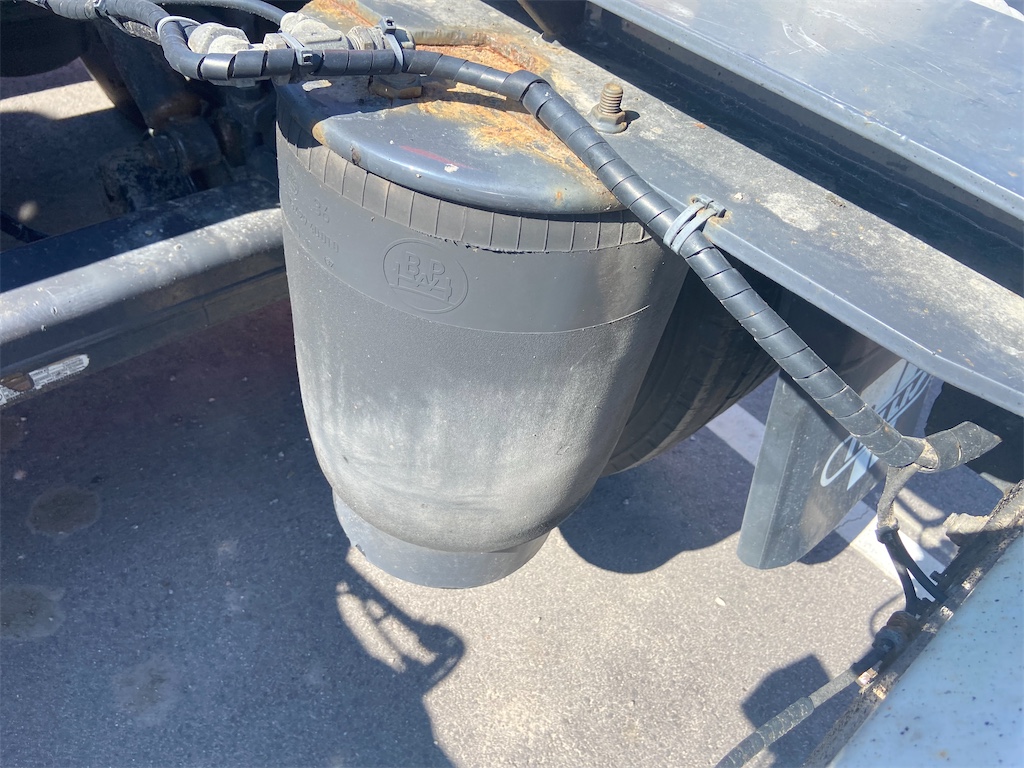

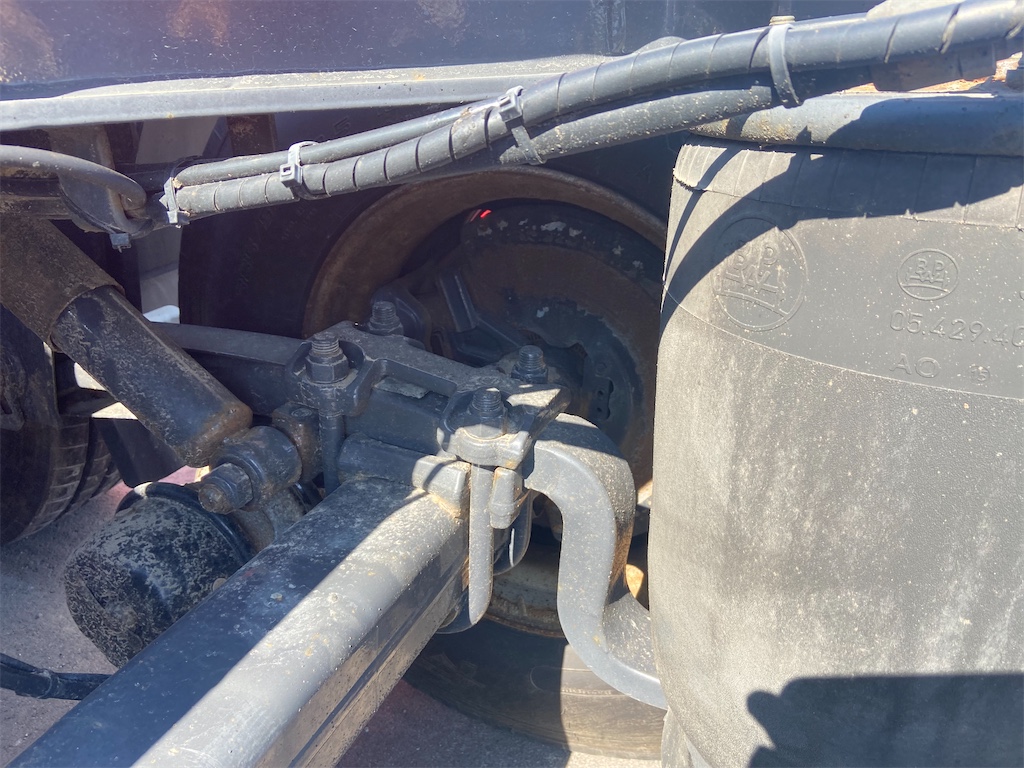

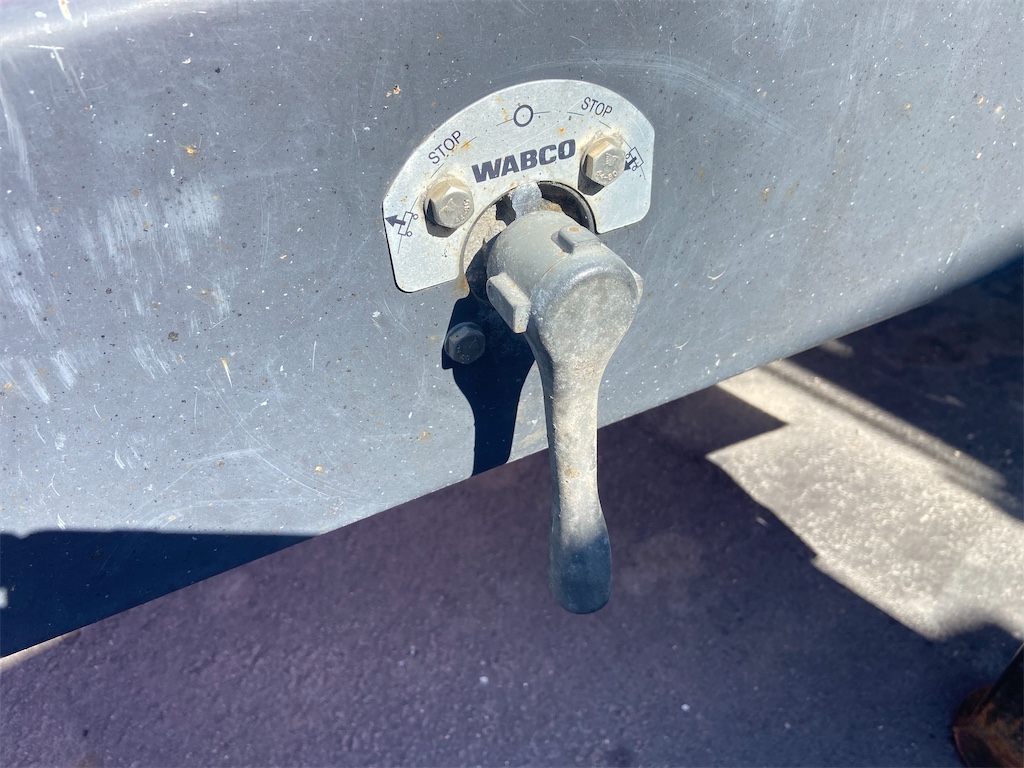

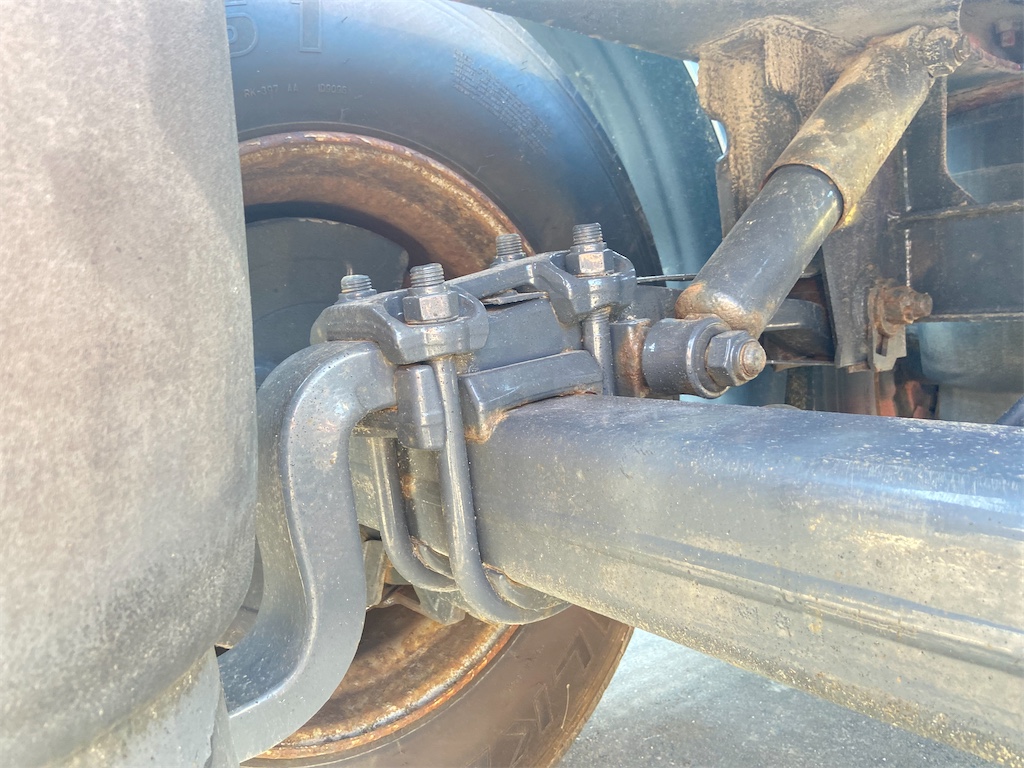

Axles 2 pcs BPW Airlight II 22.5 air-suspended 9-ton axles with lift and lower valves
Suspension -

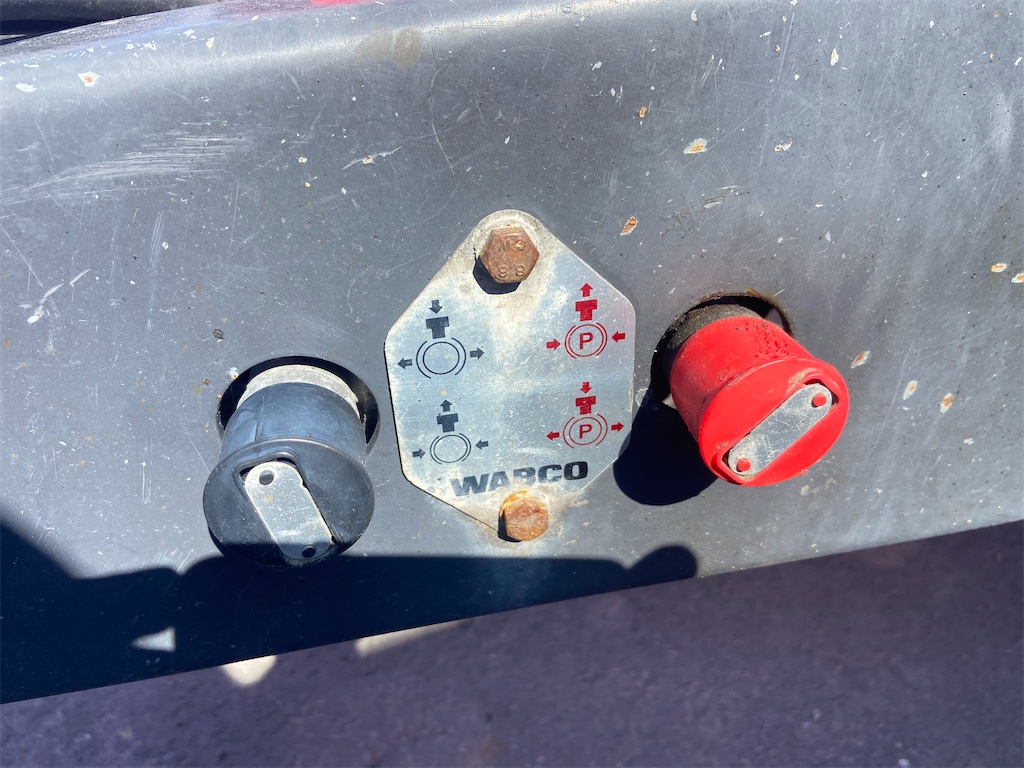

Brakes EBS-E Wabco, disc brakes (Can router)

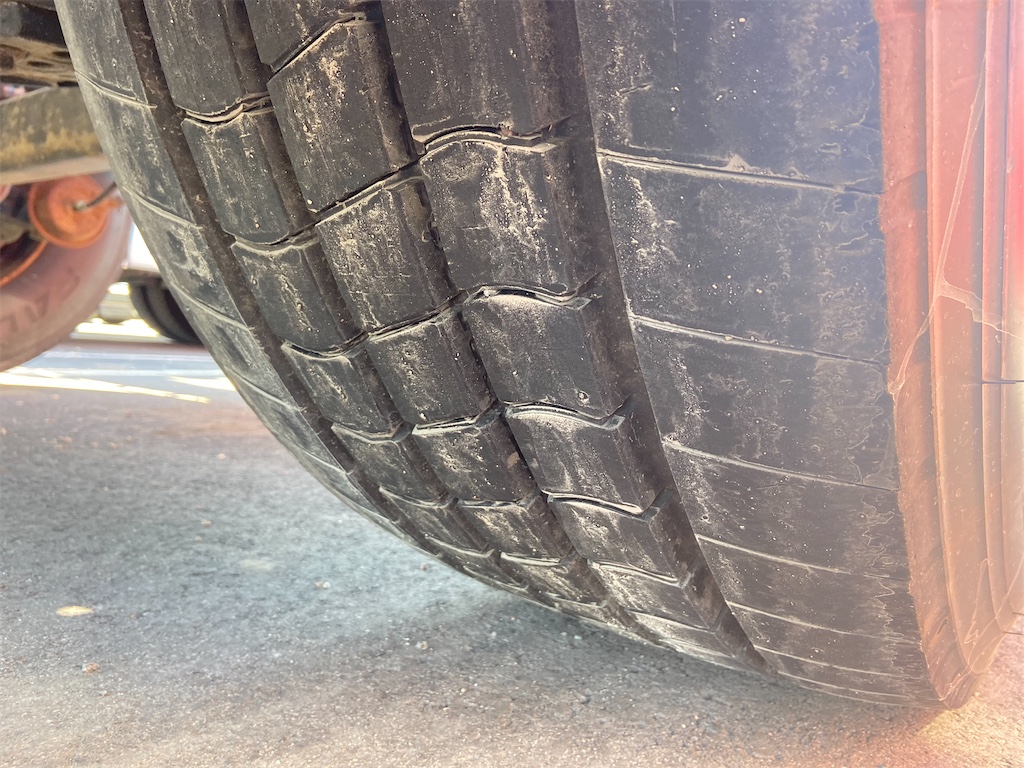

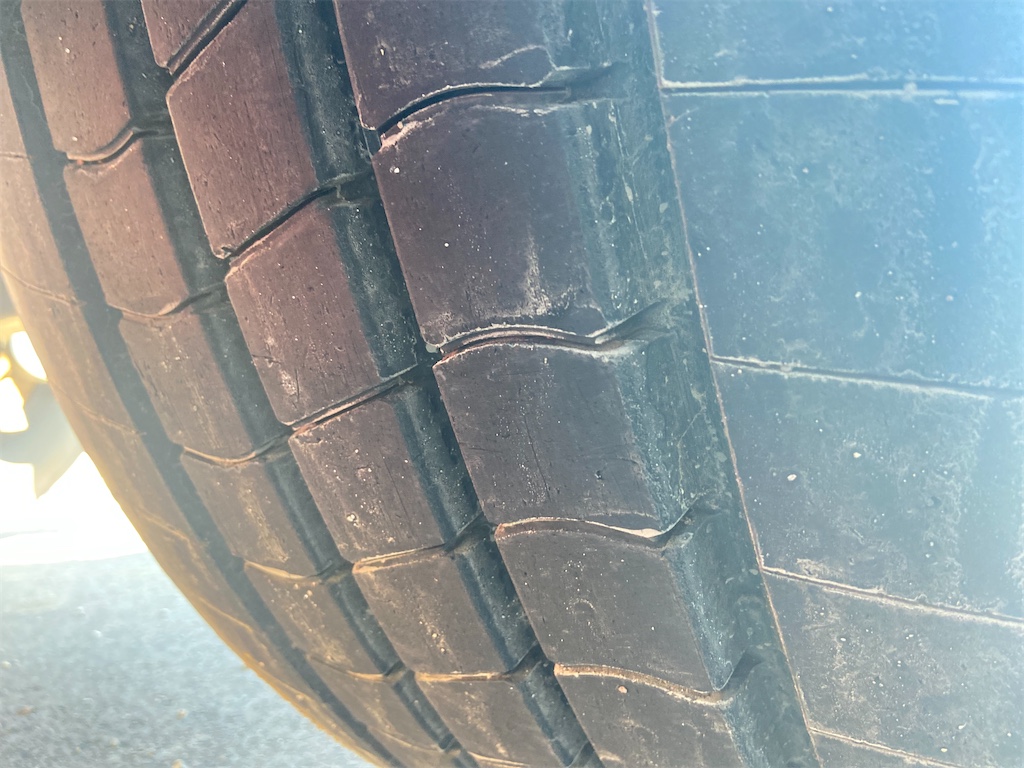

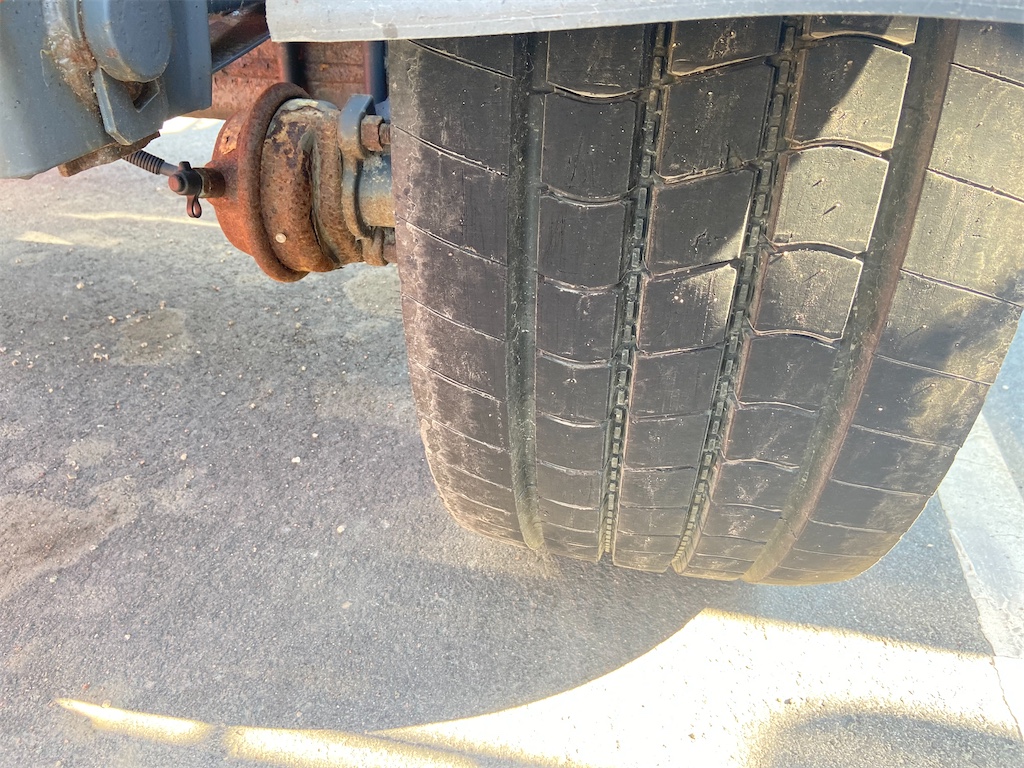

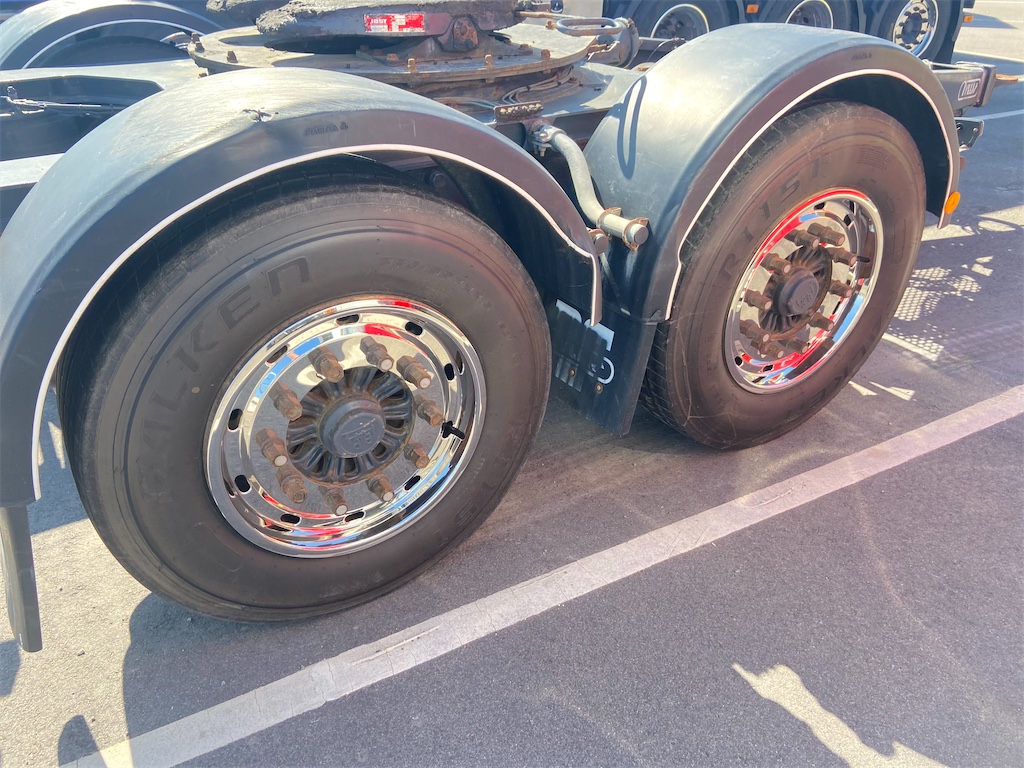

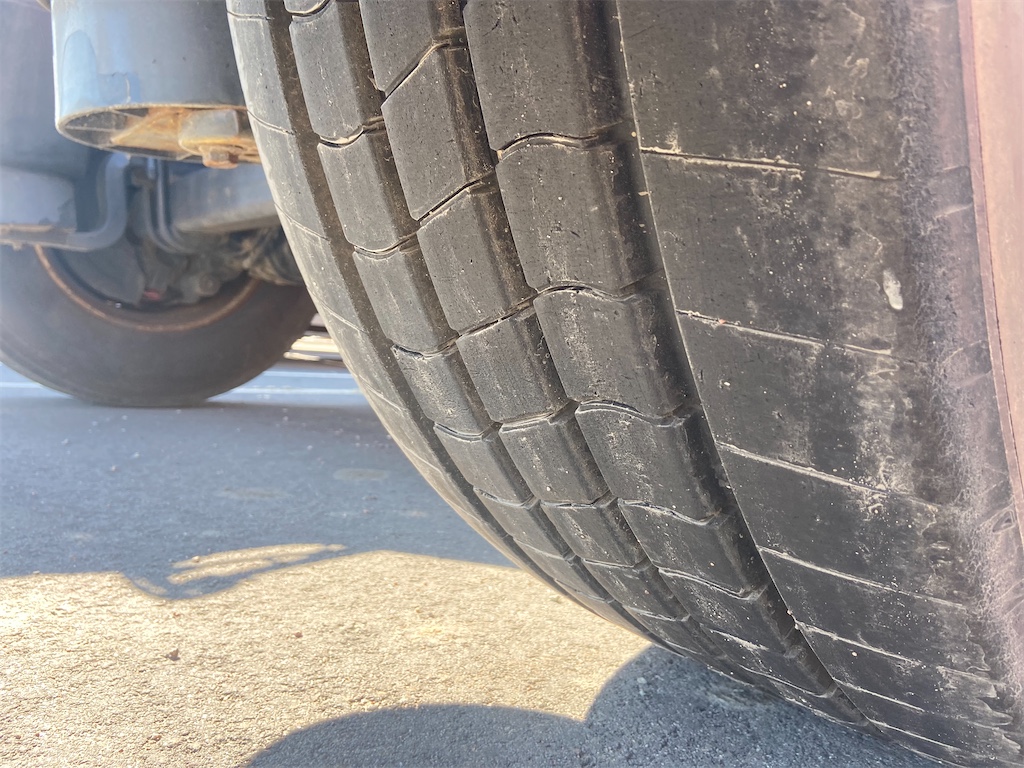

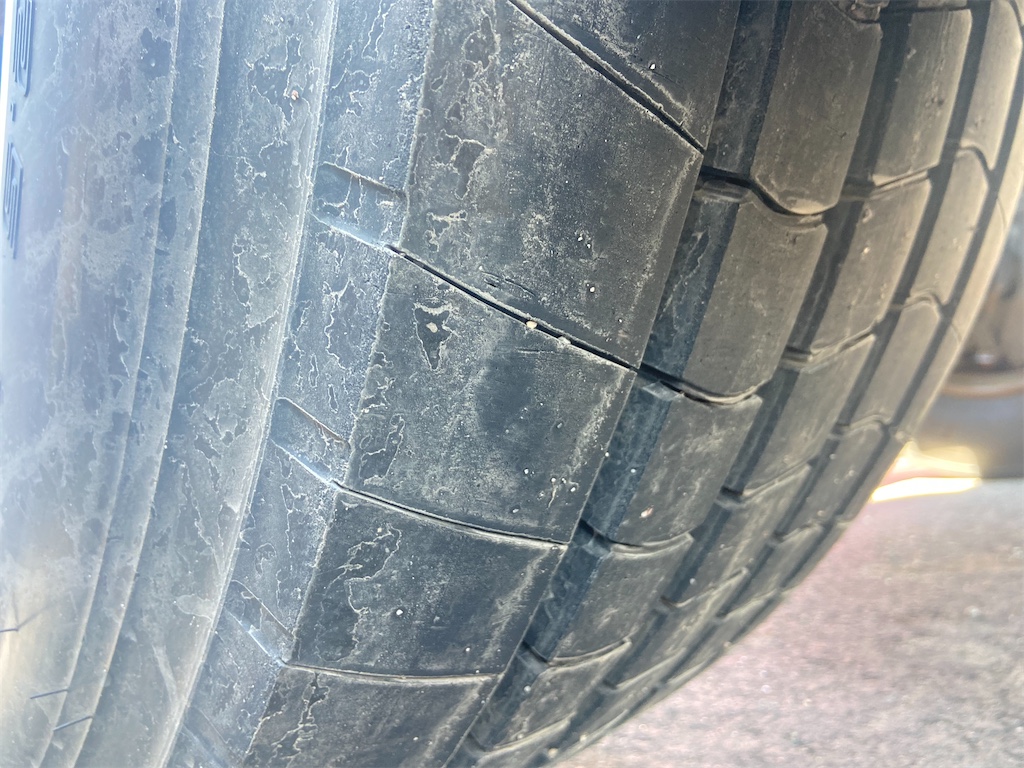

Tires 4 pcs 385/55 R22.5" Continental HTR 2 tires on steel rims

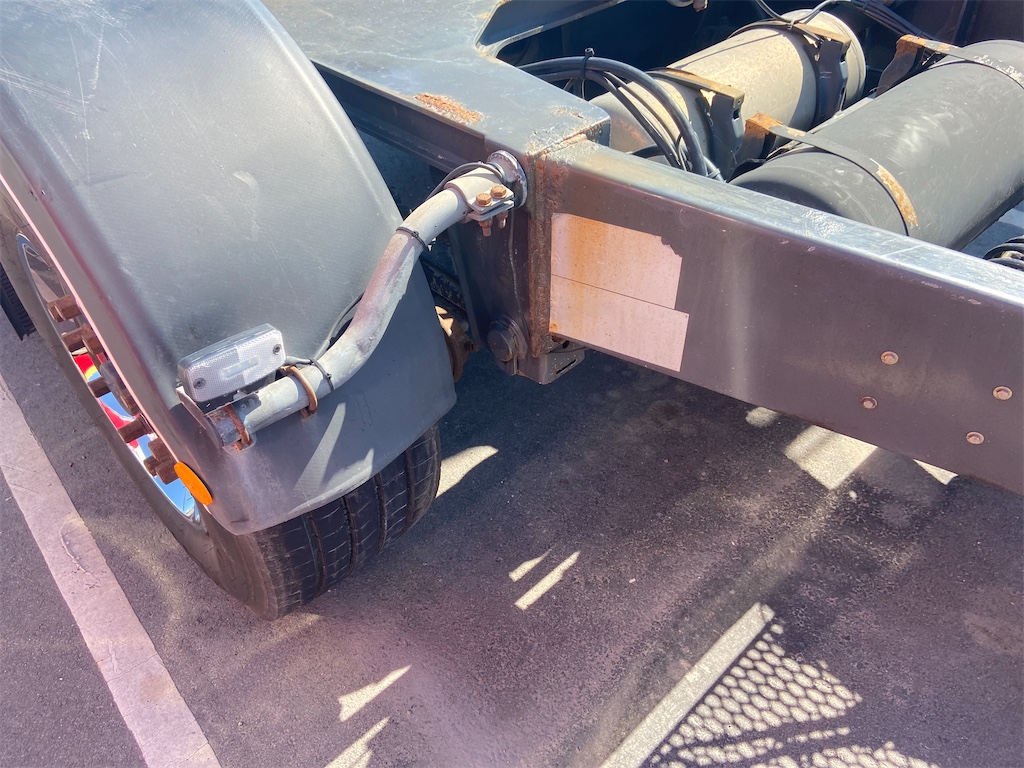

Fenders Parlok black with white edge and Tyllis mudflaps with anti-spray
Drawbar Fixed drawbar model Tyllis with grille. Waterproof document tube.
Coupling 57 mm bolted coupling, height 580 mm

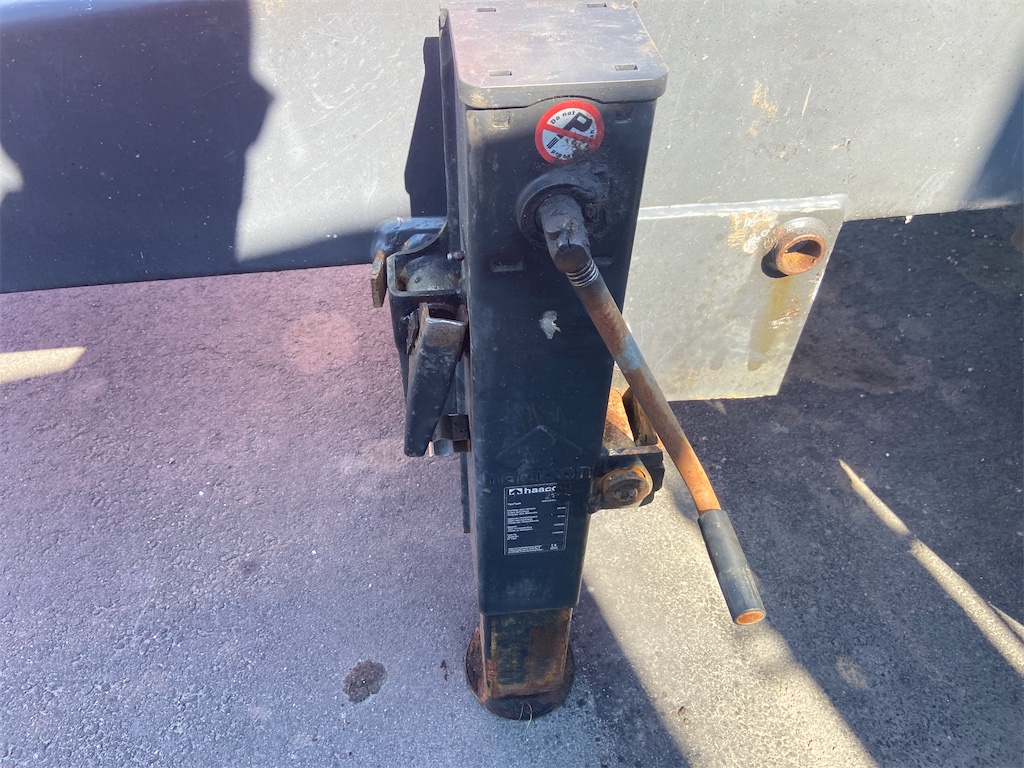

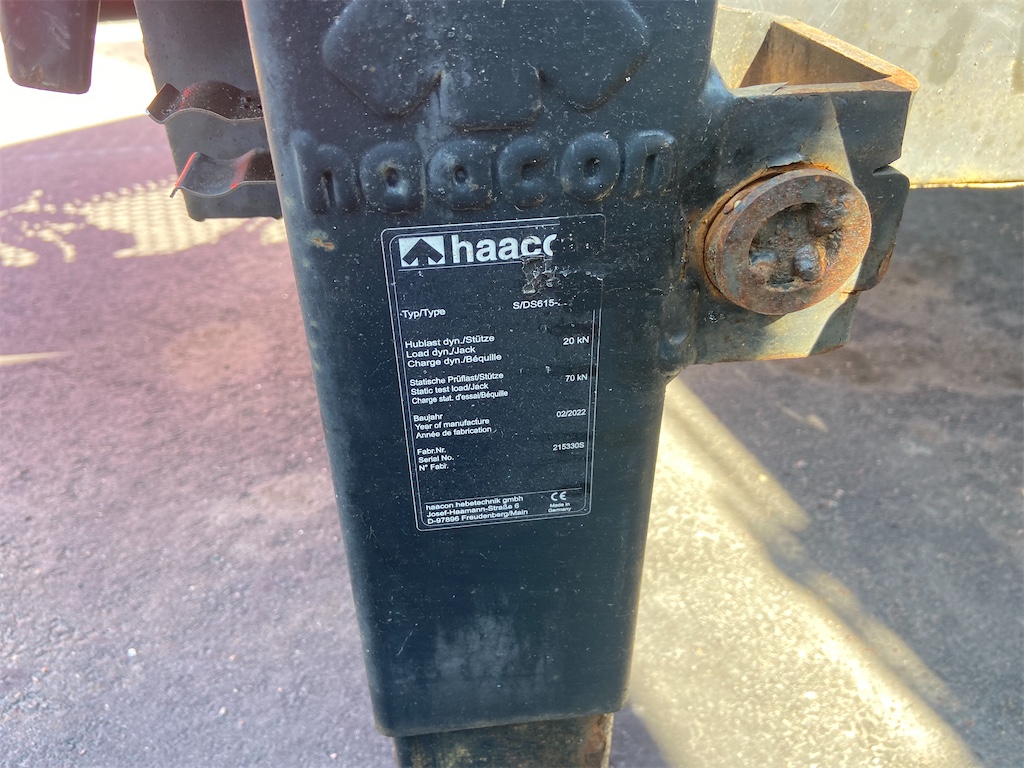

Support Legs Haacon crankable and foldable support legs

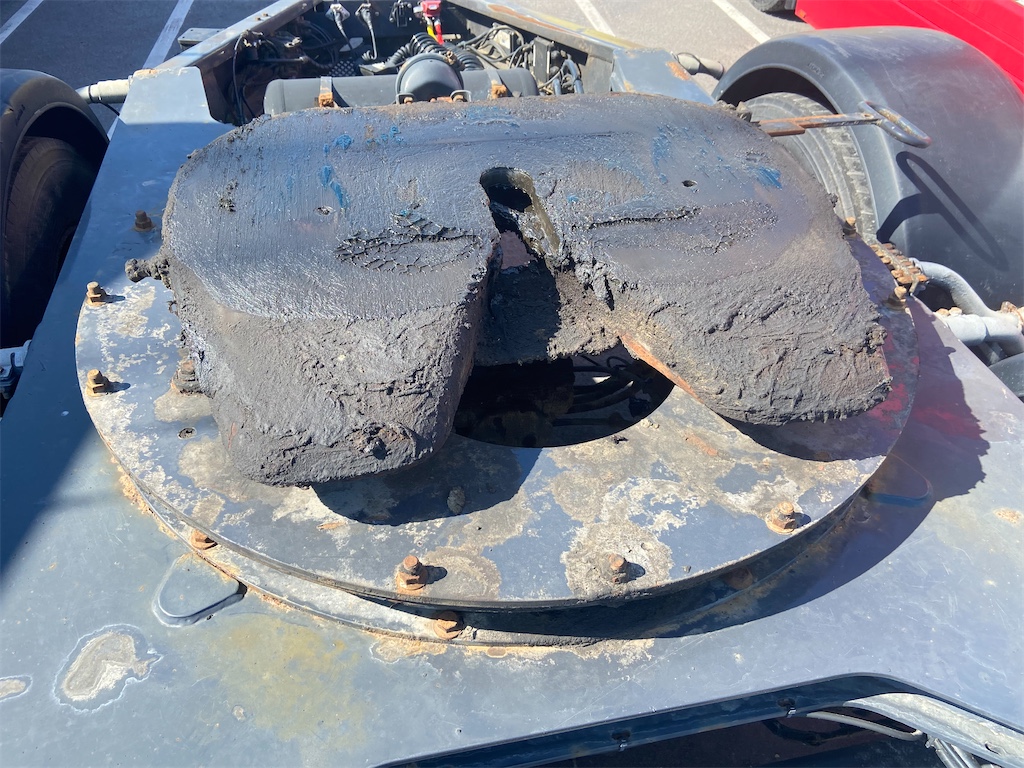

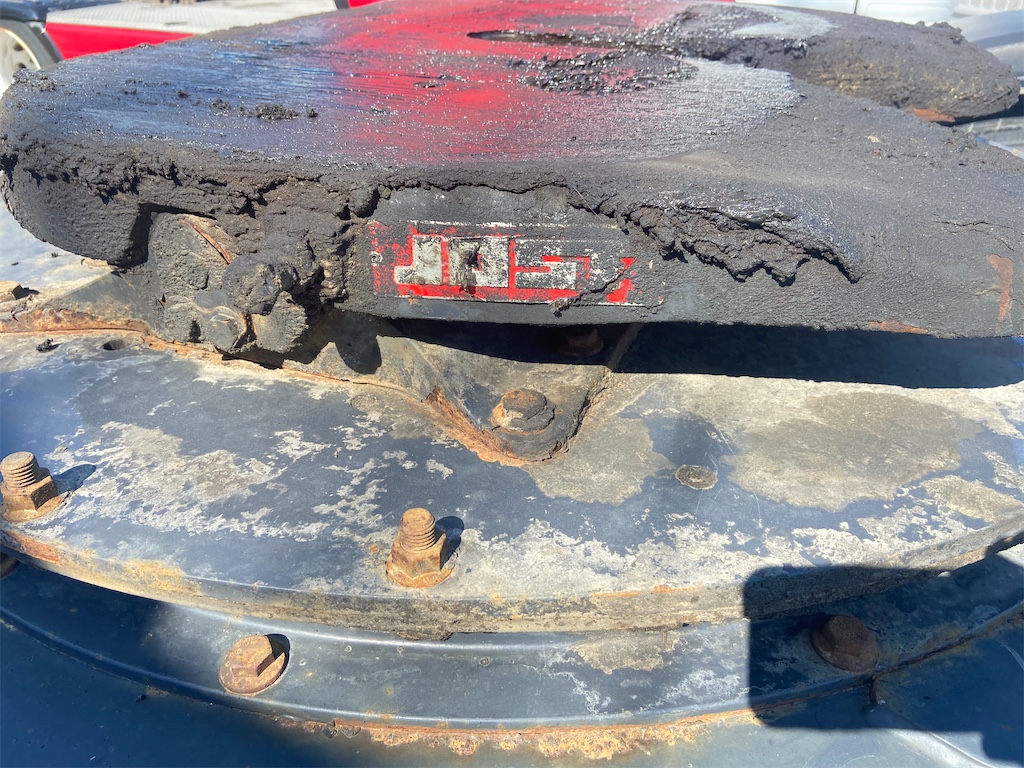

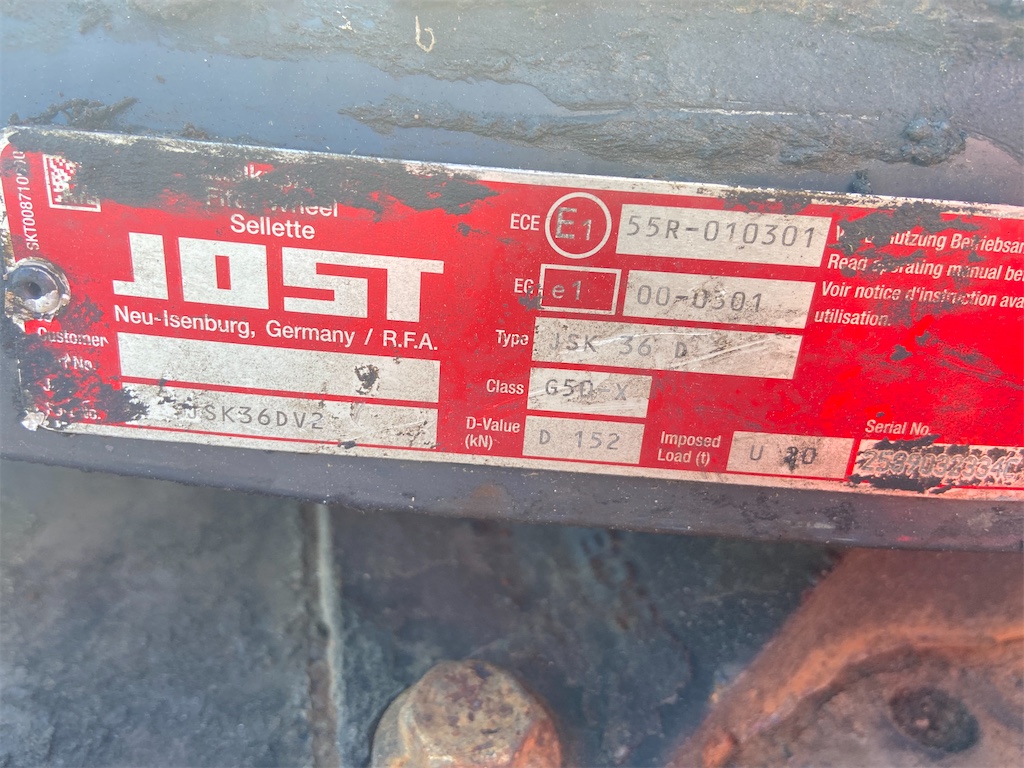

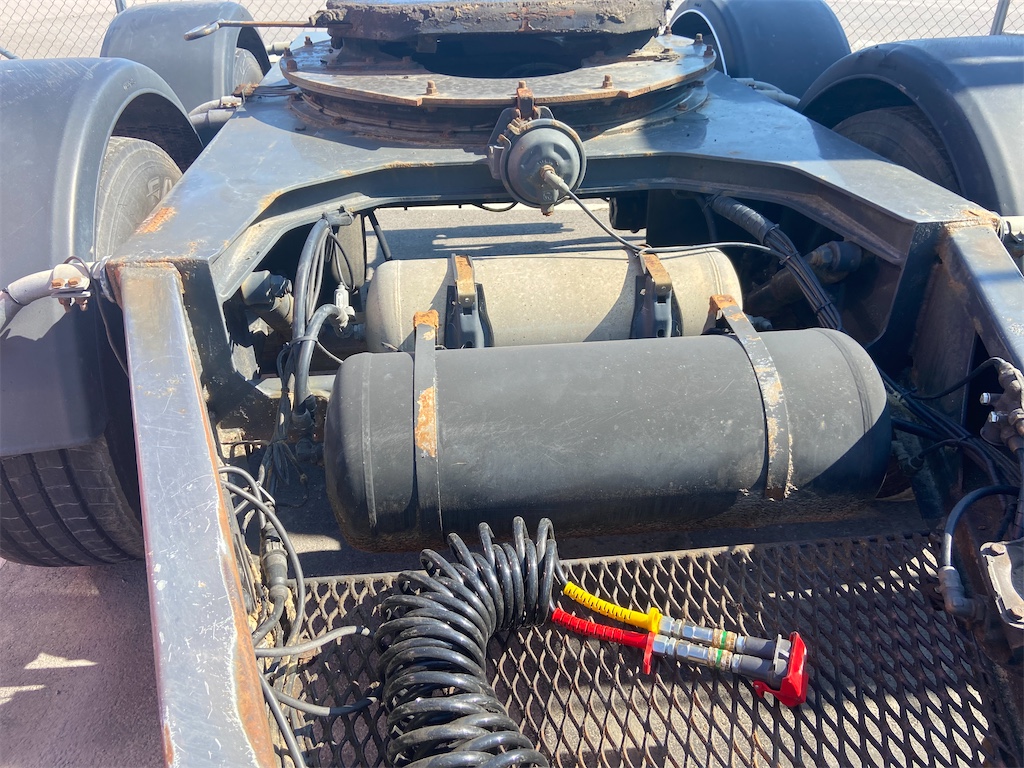

Turntable Ball ring 2 " Turntable 150 mm high
DK90/16/1200 double row ball ring grease nipples drawn to one place.
Locking Mechanical locking of ball ring

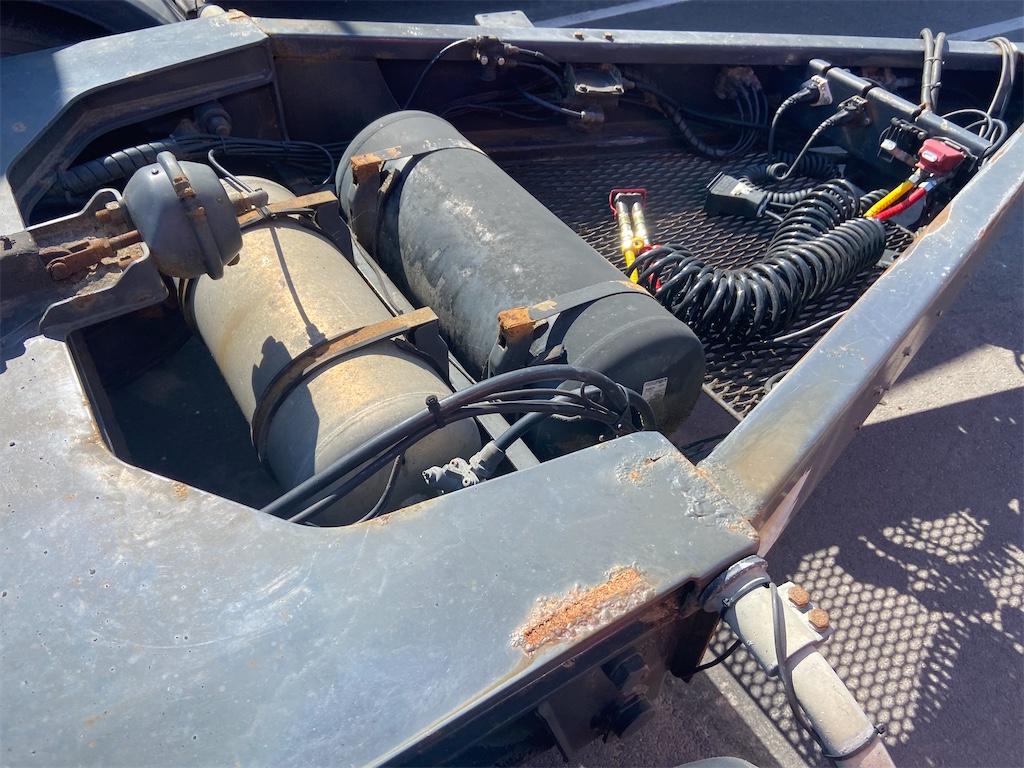

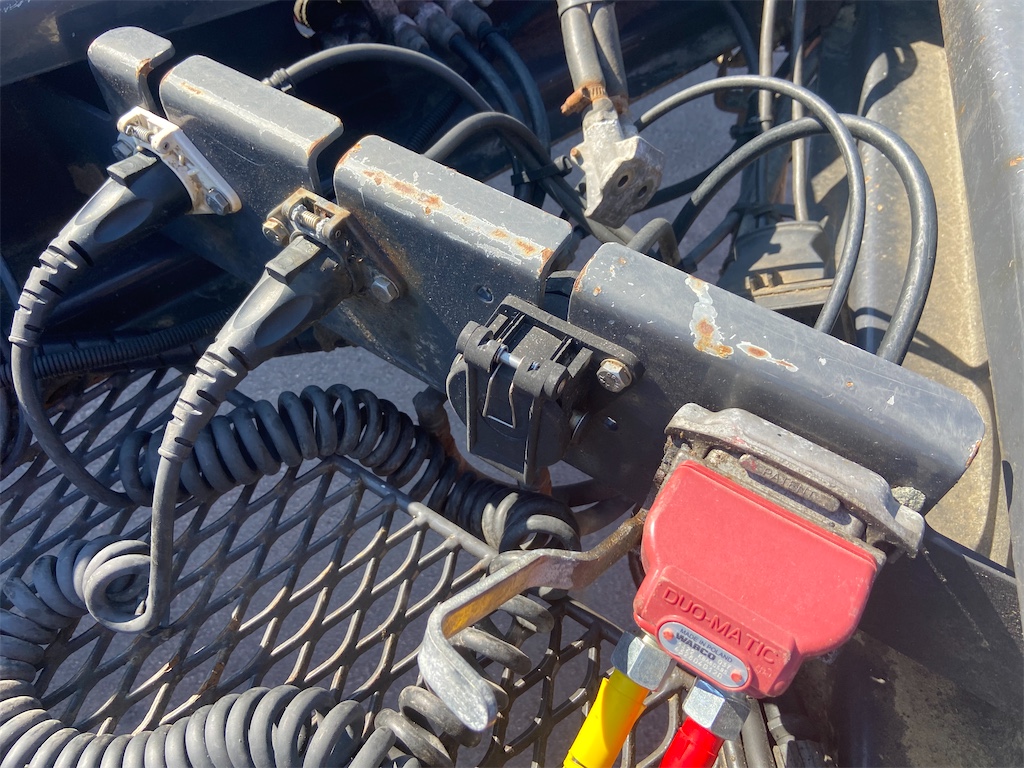

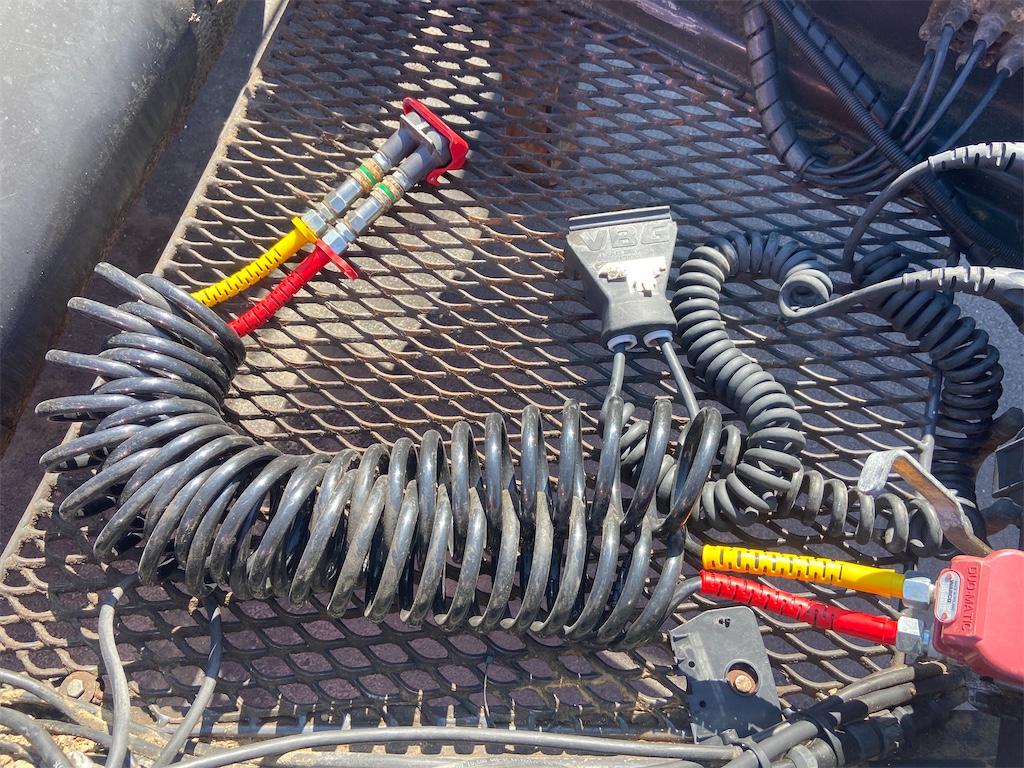

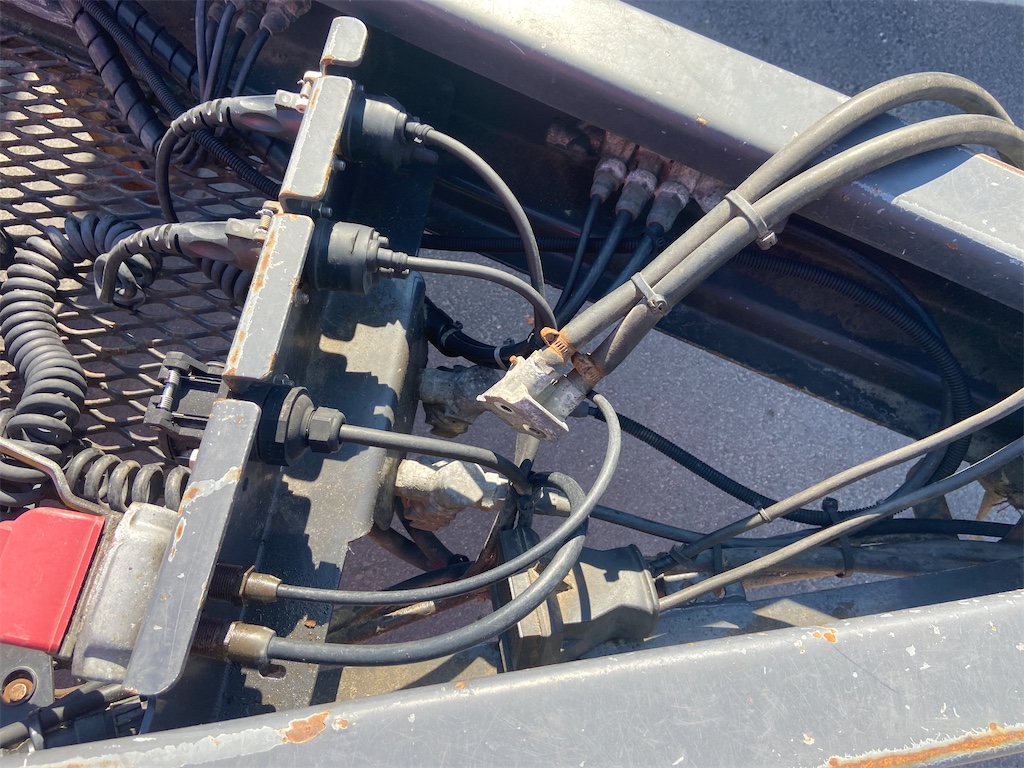

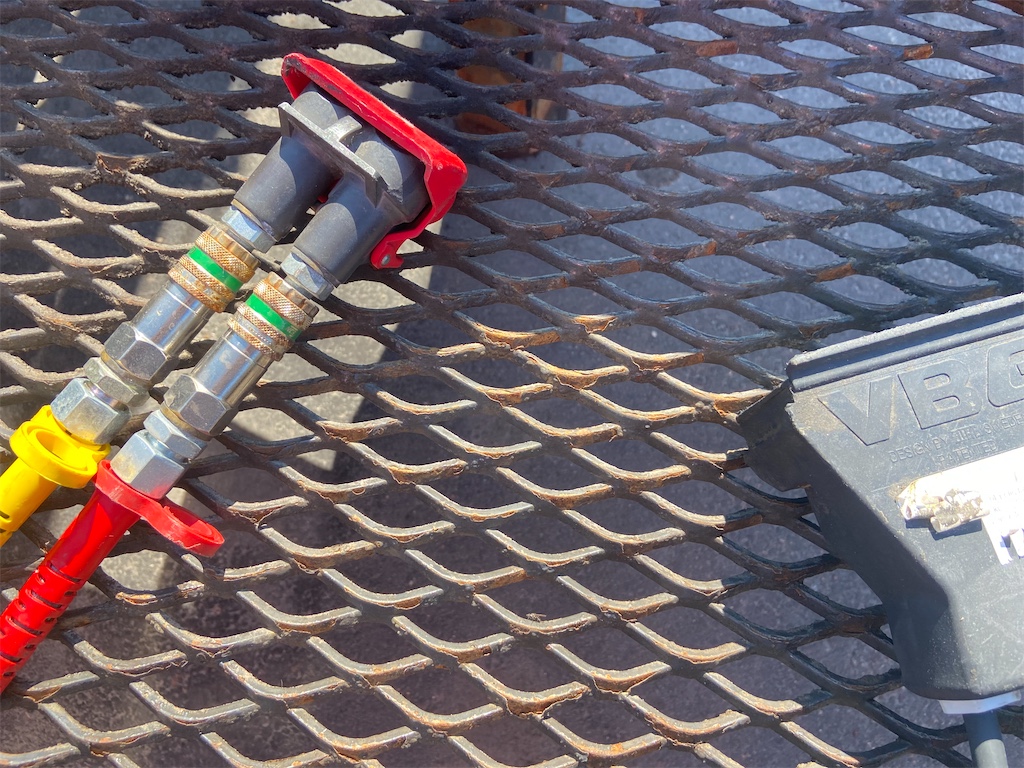

Air Connections Vehicle Duo-Matic air connection
Trailer Duo-Matic air connection
Electrical Connections Vehicle VBG 14-pin
Trailer VBG 14-pin

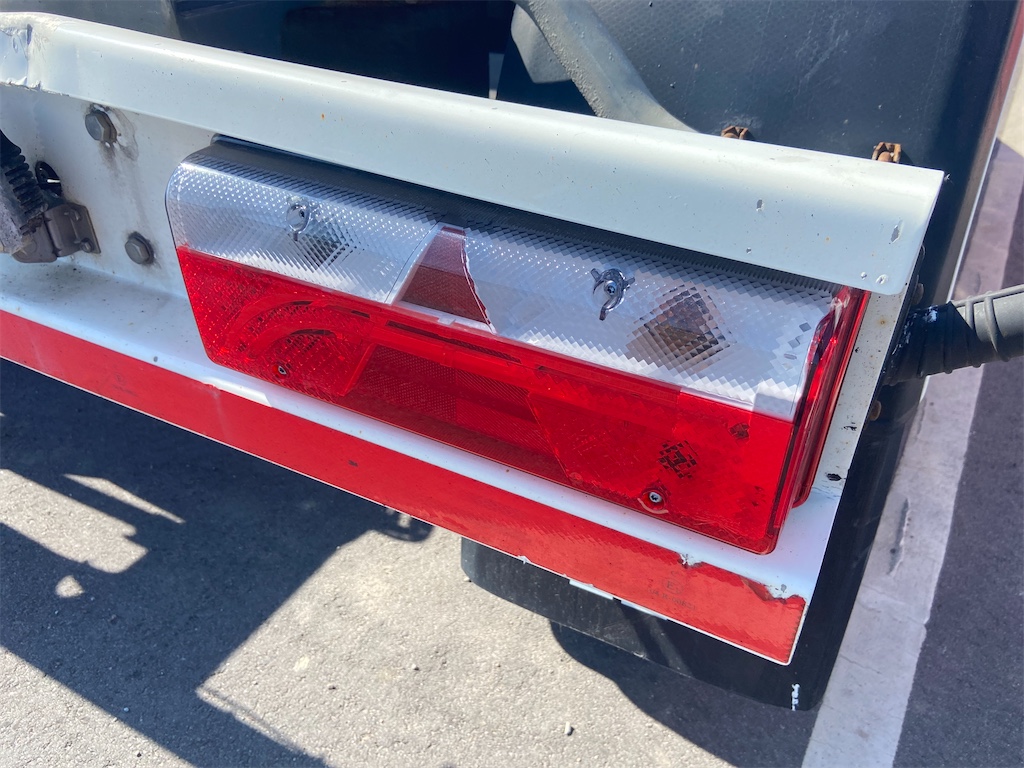

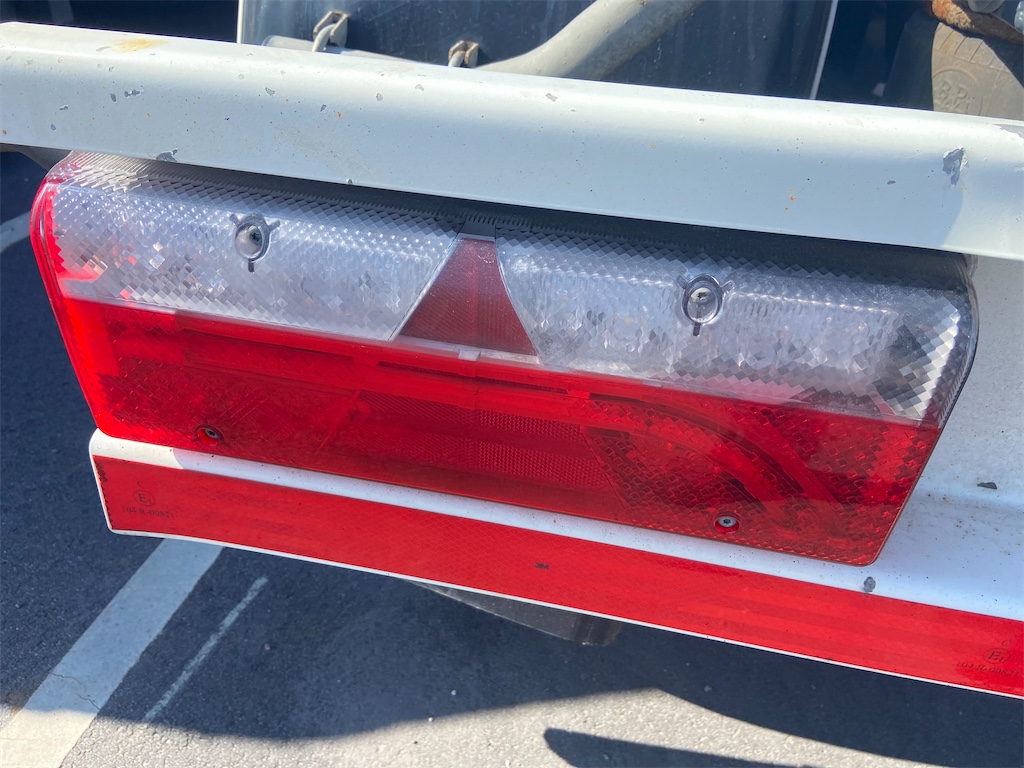

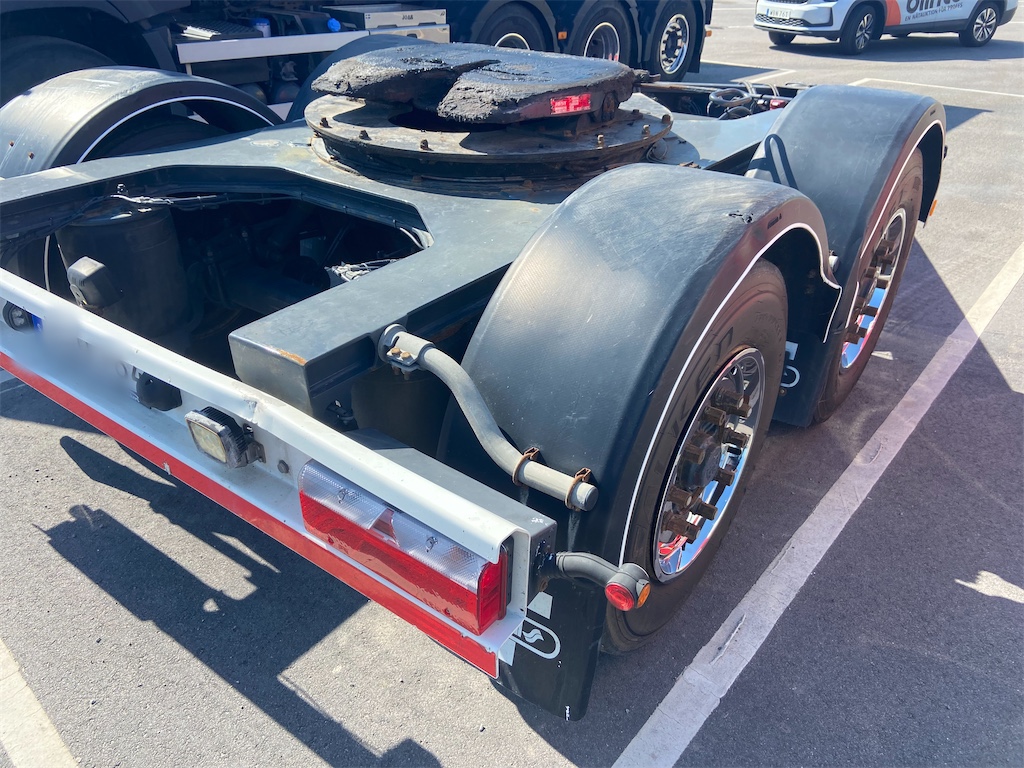

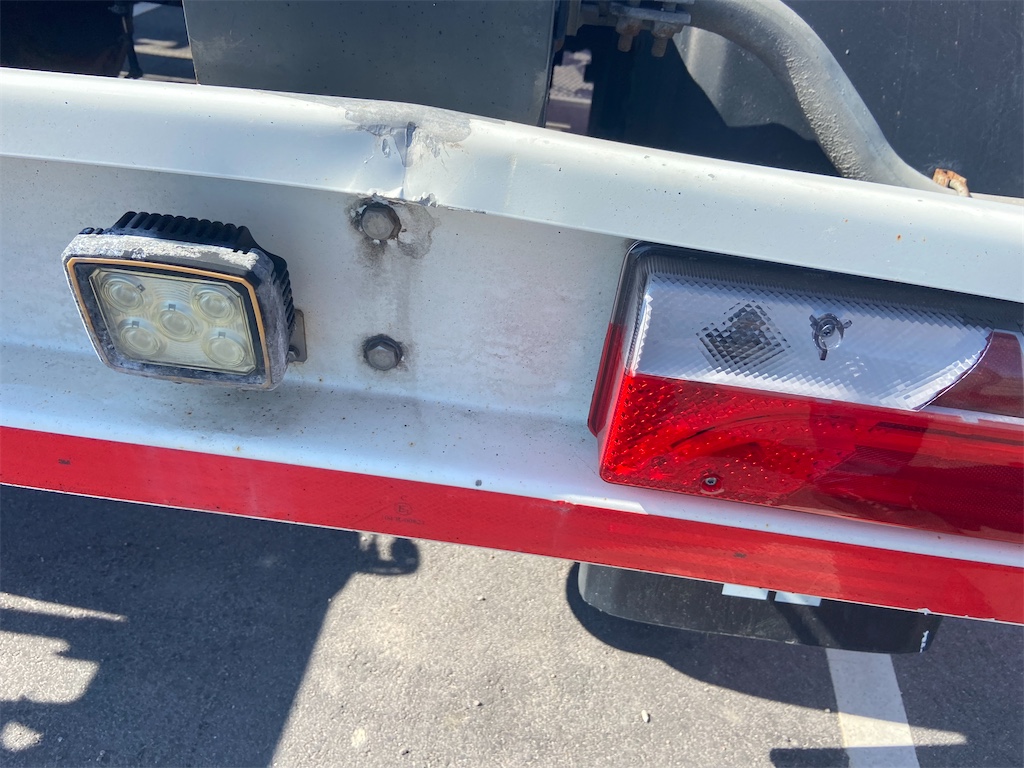

Lighting Rear 2 pcs 7-chamber rear lighting
Rubber arm lighting rear 2 pcs
Position lights front 2 pcs
Painting Blasted and painted in Scania gray
Axle Alignment Laser adjustment of axles
